UTL SOLAR PANEL

UTL Solar Panel

UTL solar panels are the latest technology and most innovative solar panels. A solar photo-voltaic panel is a composition of solar photo-volatic cells, well arranged together in an aluminium frame and covered with high quality glass. They absorb the sun’s ray and turn them into electricity that can be fed in home appliances as well as utility grids.
UTL solar panels are next-generation solar panels, manufactured by using premium quality A-grade solar cells. These solar cells are slice cut from a block of silicon, consisting of a number of crystals with a speckled reflective appearance. The thickness of these slices is clearly visible. Our solar panels are a very economical solar product and are more suitable for Indian environmental conditions.



25 years Solar Panel Warranty
25 years Solar Panel Warranty



Solar Panel Positive Power Tolerance
Solar Panel Positive Power Tolerance



Solar Panel Efficiency up to 17%
Solar Panel Efficiency up to 17%



Tempered Glass Solar Panel
Tempered Glass Solar Panel

UTL Solar Panel Range

UTL Solar Panel range starts from 40 watt to 160 watt in 12 volt and up to 350 watt in 24 volt. Buy our solar panels and  harvest maximum solar power by installing our affordable and economical solar panels. We are offering our highly efficient solar panels at very nominal discounted price ( inclusive of all taxes) .

Solar Panel Model

MRP ( inclusive of all taxes )

Discounted price ( INCLUSIVE OF ALL TAXES )

40 Watt Solar Panel

Rs. 3,334

Rs.1,856

60 Watt Solar Panel

Rs. 4,174

Rs.2,375

100 Watt Solar Panel

Rs. 6,628

Rs.3,686

160 Watt Solar Panel

Rs. 9,346

Rs.5,242

335 Watt Solar Panel

Rs. 16,489

Rs.9,603

390 Watt Solar Panel

Rs. 20,670

Rs. 12,377

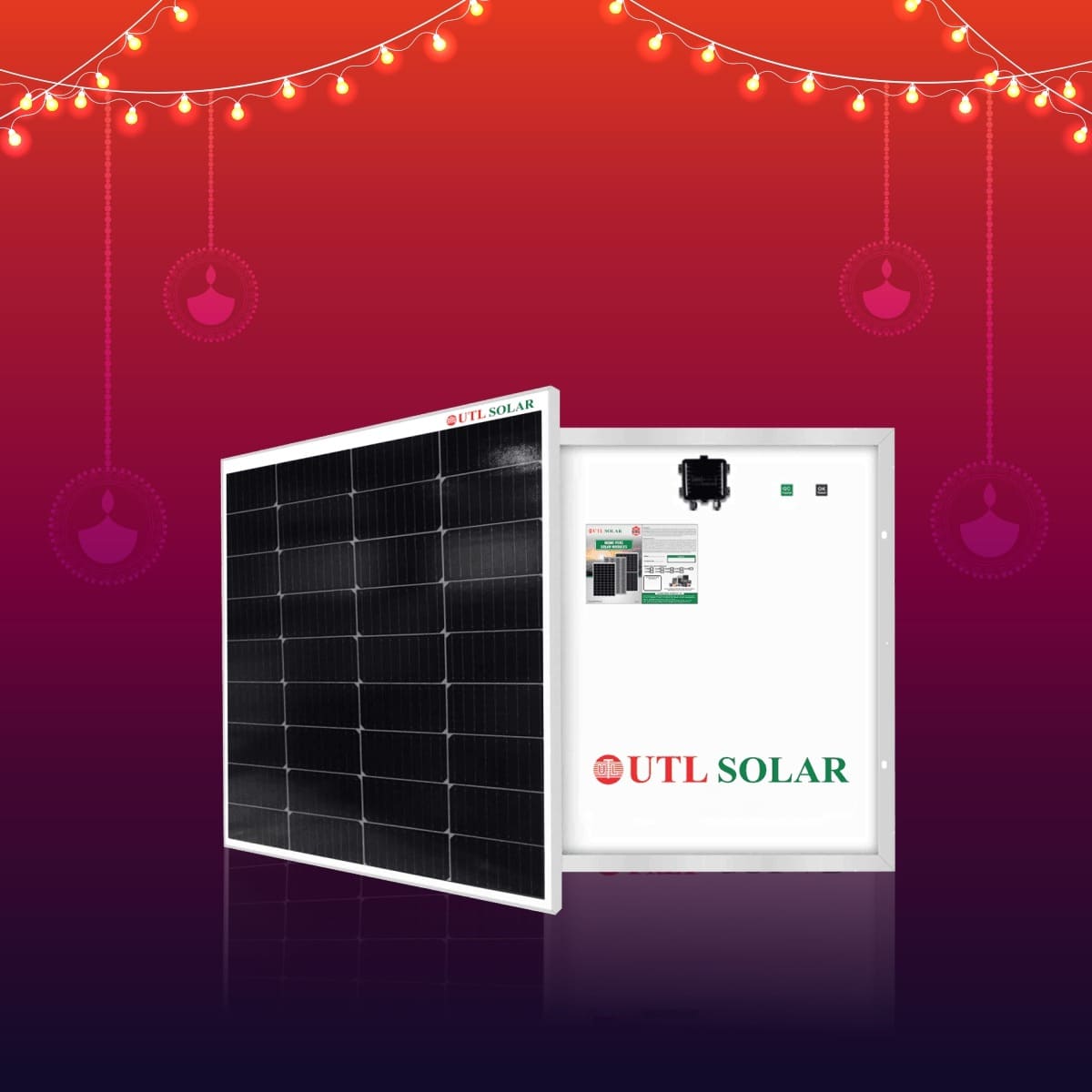

40 Watt Solar Panel

It’s a 36 cell (9 x 4) high quality solar photovoltaic module with 40 Wp output. Our 40 watt solar panel module is more than 17% efficient with low temperature coefficient, high fill factor, excellent low light irradiance performance. We offer it to our consumers with a long expected life of 25-30 years.

Additional specifications of 40 watt solar module are as following

ParticularsDescription
Solar Panel Rating40 Watt
Panel TypePolycrystalline
Short circuit current5.5 ampere
Operating voltage at Pmax VMP12 volt
Operating current Imp5.1 ampere
Open circuit voltage VOC14 volt
Module efficiency %>16
Operating temperature-40 °C to 80 °C
Maximum system voltage100 V
Power tolerance3%
Fill factor77%
Standard test conditionIrradiance of 1000 W/m square, spectrum AM 1.5 and cells temperature of 25 °C
Max. series fuse rating10
No. of Busbar5BB
No. of cells36
Cell arrangement9*4
Module dimension987*392*35 mm
Weight7 Kg
Front side junction boxIP65
FrameAnodized Aluminum Alloy
Front glass3.2mm Toughened Textured
Cables and connectors4mm,AWG 1000V/mc4 connectors
Warranty25 Years Performance & 10 Year Product Warranty

Discounted Price ( Inclusive of all taxes )

Rs.1,802

60 Watt Solar Panel

Our 60 watt solar panel is the best-selling and most reliable panel in 12V capacity. It’s a 36 cells solar module, suitable for wide operating temperature i.e. from -40°C to 80°C. Its other feature includes 5 bus bars, 3% power tolerance capacity with 25 years performance warranty.

Additional specifications of 60 watt solar module are as following

ParticularsDescription
Solar Panel Rating60 Watt
Panel TypePolycrystalline
Short circuit current0073 Isc6 ampere
Operating voltage at Pmax VMP12 volt
Operating current Imp5.9 ampere
Open circuit voltage VOC18 volt
Module efficiency %>16
Operating temperature-40 °C to 80 °C
Maximum system voltage100 V
Power tolerance3%
Fill factor77%
Standard test conditionIrradiance of 1000 W/m square, spectrum AM 1.5 and cells temperature of 25 °C
Max. series fuse rating10
No. of Busbar5BB
No. of cells 36
Cell arrangement9*4
Module dimension1000*400*35 mm
Weight9 Kg
Front side junction boxIP65
FrameAnodized Aluminum Alloy
Front glass3.2mm Toughened Textured
Cables and connectors4mm,AWG 1000V/mc4 connectors
Warranty25 Years Performance & 10 Year Product Warranty

Discounted Price ( Inclusive of all taxes )

Rs.2,373

100 Watt Solar Panel

UTL 100 watt solar panel is one of the top-rated solar panels with high quality A grade solar cells and ultra clear tempered glasses that does not break easily. It has the ability to perform efficiently even in low light and cloudy weather. Our 100 watt 12V solar PV module comes with an IP 65 rated front side junction box.

Additional specifications of 100 watt solar module are as following

ParticularsDescription
Solar Panel Rating100 Watt
Panel TypePoly crystalline
Short circuit current0073 Isc6.3 ampere
Operating voltage at Pmax VMP17.9 volt
Operating current Imp5.7 ampere
Open circuit voltage VOC21.6 volt
Module efficiency %>15
Operating temperature-40 °C to 80 °C
Maximum system voltage100 V
Power tolerance3%
Fill factor77%
Standard test conditionIrradiance of 1000 W/m square, spectrum AM 1.5 and cells temperature of 25 °C
Max. series fuse rating10
No. of Busbar4BB
No. of cells36
Cell arrangement9*4
Module dimension1006*666*35 mm
Weight10.5Kg
Front side junction boxIP65
FrameAnodized Aluminum Alloy
Front glass3.2mm Toughened Textured
Cables and connectors4mm,AWG 1000V/mc4 connectors
Warranty25 Years Performance & 10 Year Product Warranty

Discounted Price ( Inclusive of all taxes )

Rs.3,617

160 Watt Solar Panel

This 160 watt solar panel is a high efficiency polycrystalline solar panel with 36 cells and 5 busbars solar panel, mounted in anodized aluminum alloy frame. Its power generating capacity is 5.7 amps current at peak. It is the highest capacity solar module in 12V capacity. It is also covered with 3.2mm toughened textured glass for a long life.

Additional specifications of 160 watt solar module are as following

ParticularsDescription
Solar Panel Rating160 Watt
Panel TypePolycrystalline
Short circuit current0073 Isc8.89 ampere
Operating voltage at Pmax VMP18.8 volt
Operating current Imp8.56 ampere
Open circuit voltage VOC21.6 volt
Module efficiency %>16
Operating temperature-40 °C to 80 °C
Maximum system voltage100 V
Power tolerance3%
Fill factor77%
Standard test conditionIrradiance of 1000 W/m square, spectrum M 1.5 and cells temperature of 25 °C
Max. series fuse rating10
No. of Busbar5BB
No. of cells36
Cell arrangement9*4
Module dimension1486*666*35 mm
Weight12Kg
Front side junction boxIP65
FrameAnodized Aluminum Alloy
Front glass3.2mm Toughened Textured
Cables and connectors4mm,AWG 1000V/mc4 connectors
Warranty25 Years Performance & 10 Year Product Warranty

Discounted Price ( Inclusive of all taxes )

Rs. 5,187

335 Watt Solar Panel

UTL 335 watt solar panel is an extremely efficient 72 cell (12 x 6) polycrystalline solar panel. This solar panel is more than 17% efficient with -40 °C to 80 °C operating temperature, 77% fill factor, excellent low light irradiance performance. This solar panel also has 3.2 mm toughened  textured glass, IP65, 3 diode front side junction box for MC4 compatible cable connector.

Additional specifications of 335 watt solar module are as following

ParticularsDescription
Solar Panel Rating

335 Watt

Panel TypePolycrystalline
Short circuit current0073 Isc9.10 ampere
Operating voltage at Pmax VMP37.03 volt
Operating current Imp8.79 ampere
Open circuit voltage VOC45 volt
Module efficiency %>18
Operating temperature-40 °C to 80 °C
Maximum system voltage100 V
Power tolerance3%
Fill factor77%
Standard test conditionIrradiance of 1000 W/m square, spectrum AM 1.5 and cells temperature of 25 °C
Max. series fuse rating10
No. of Busbar5BB
No. of cells72
Cell arrangement12*6
Module dimension1960*690*40 mm
Weight21 kg
Front side junction boxIP65, 3 diode
FrameAnodized Aluminum Alloy
Front glass3.2mm Toughened Textured
Cables and connectors4mm,AWG 1000V/mc4 connectors
Warranty25 Years Performance & 10 Year Product Warranty

Discounted Price ( Inclusive of all taxes )

Rs.9,122

Key Features

  • Excellent power generation even in low light irradiation
  • 3.2 mm toughened textured glass for front protection.
  • Highly efficient solar panels with more then 18% efficiency.
  • Available in various power ratings with 36/72 cells.
  • Superior performance in all atmospheres.
  • Anodized aluminum alloy frame for protection.

FAQs

Do you manufacture only solar panels?

We at UTL Solar manufacture and  provide complete solar solution to our customers. We also manufacture all types of solar inverter, battery and online solar PCUs.

How many solar panels are required to charge 150Ah solar battery?

2 or 3 panels of 160 watt watt with UTL Solar Charge controller.

How many solar panels are required to run an air-conditioner?

To run an dual inverter you can install 3 to 5kW solar system with 3kW solar panels.

Do you manufacture monocrystalline solar panels?

No, we manufacture premium quality poly-crystalline solar panels only.

What is the highest capacity of UTL solar panel?

390 watt solar panel is the highest capacity solar panel that we have designed till now.

What is the selling price of 100 watt solar panel?

The selling / Discounted price ( inclusive of all taxes ) of 100 watt solar panel is Rs. 3686 only, that is equal to Rs.36/watt.

How many solar panels should I buy for 3kW residential solar system?

If you are installing a 3kW solar system then you need around 9 solar panels of 335 watt capacity each.

What is the operating temperature of UTL solar panels?

The UTL  solar photovoltaic panels have wide operating temperature i.e. -40°C to 80°C.

How to maintain the efficiency of these solar panels?

To maintain the high efficiency of UTL solar panels, clean them time to time as required.

What is the average efficiency rate of these solar panels?

Our solar panels are highly efficient with more than 18% efficiency rate.

Does the company provide any warranty on these solar panels?

Yes, there is 25 year performance & 10 year product warranty.
