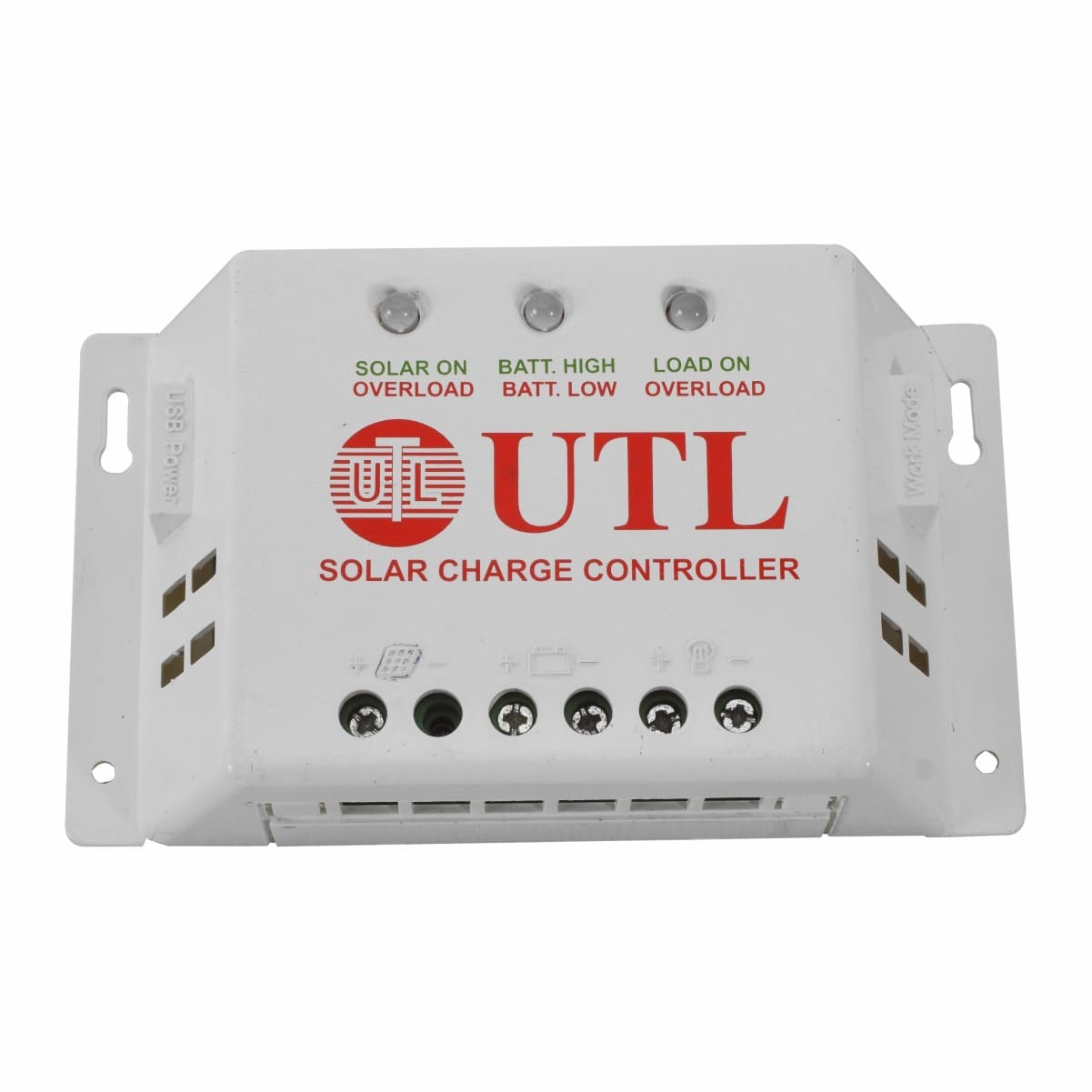

SOLAR PWM CHARGE CONTROLLER
PWM Charge Controller 12V/24V/10A supports both 12V and 24V battery systems. It automatically detects the connected battery voltage and adjusts its operation accordingly. It enables inverter batteries to be charged through solar panels and simplifies integration of solar power into an existing backup system.

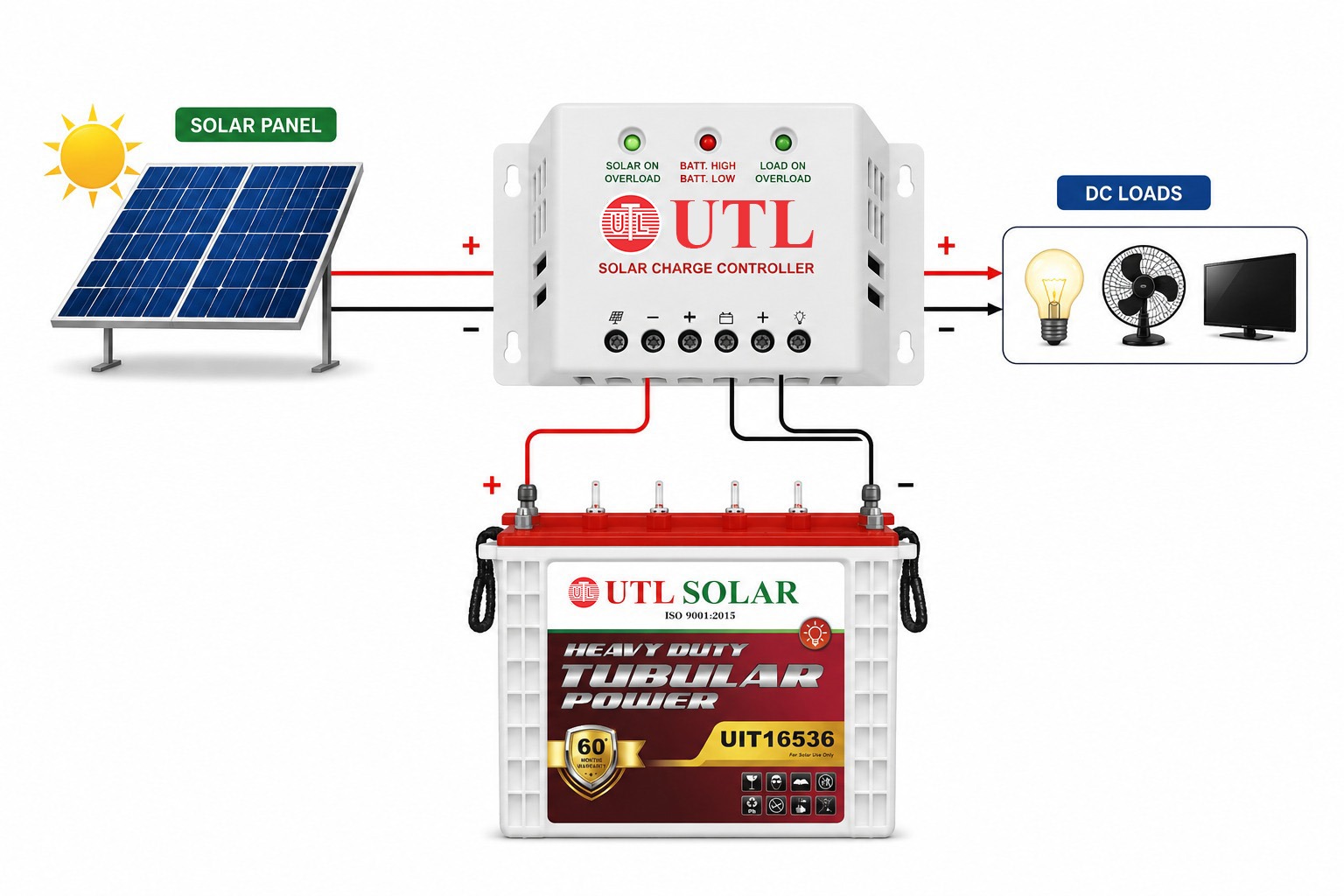

Power flows through the system in the following sequence:
Solar Panel → Charge Controller → Battery → Inverter/Loads
| Particular | Description |
| Model | PWM1224/10A LED |
| DC Voltage | 12V & 24V |
| Technology | PWM |
| Efficiency | > 95% |
| Display | LED |
| Battery Type | Tubular |
| Battery Capacity | 200 AH Max. |
| Manufacturer | Fujiyama Power Systems Ltd. |
| Dimension (LXWXH) | 75x132x36 mm |
| Weight | 300gm |
Share
The 10A PWM Solar Charge Controller manages the power flow between solar panels and batteries, helping ensure safe and efficient charging. Compatible with both 12V and 24V battery systems, it automatically detects the connected voltage and adjusts its operation accordingly.
By regulating the electricity generated by solar panels, the controller helps protect batteries from overcharging and deep discharge, supporting better battery performance and longer service life. It is an ideal solution for users who want to charge batteries through solar panels while continuing to use their existing inverter and battery setup.
Built-in protection against overload, short circuits, reverse polarity, and reverse current helps keep the system safe during operation. Suitable for home backup systems, solar lighting applications, and small off-grid installations, this PWM solar controller offers reliable battery charging and dependable day-to-day performance.

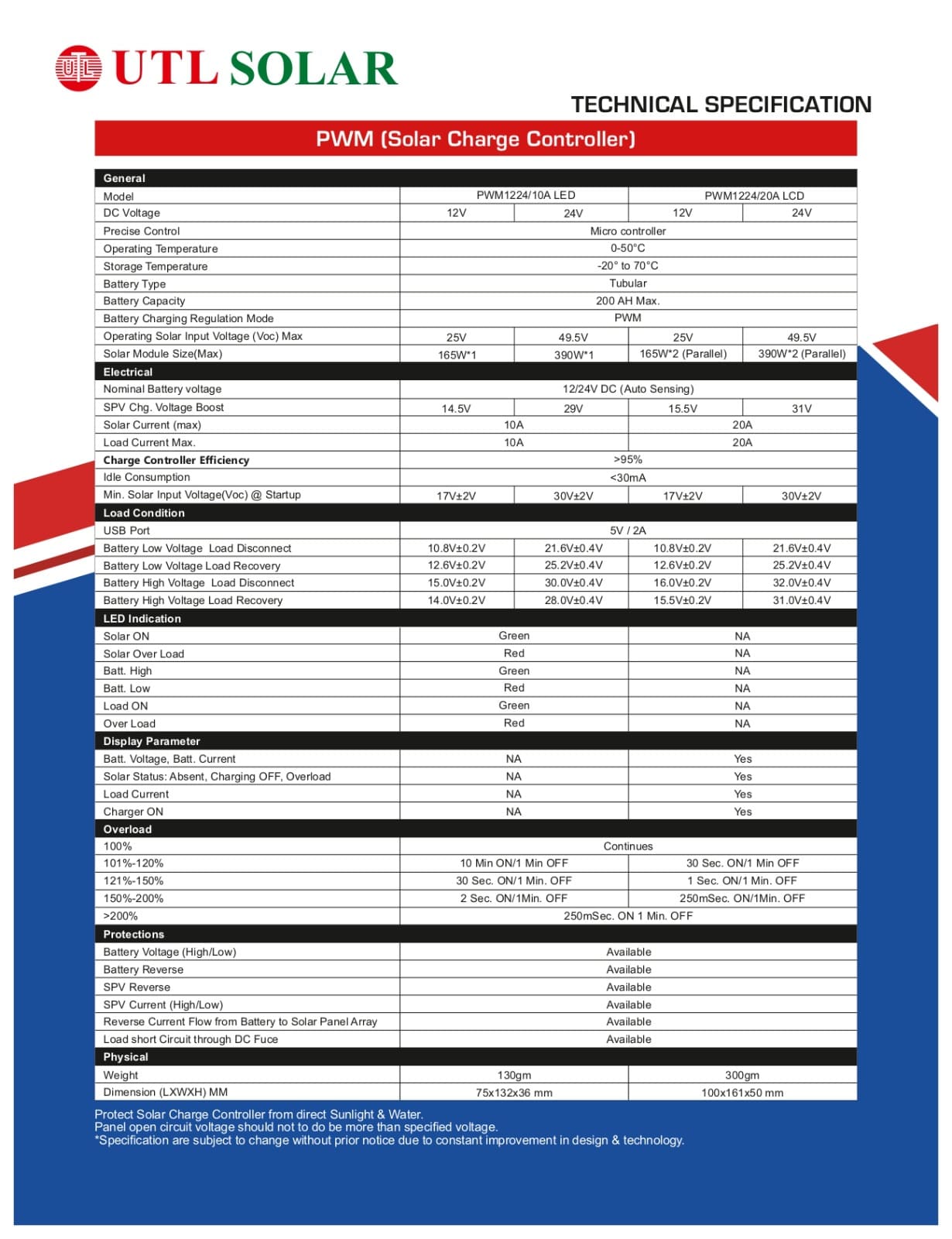

Specification
FAQs
1. What is a PWM charge controller?
A PWM charge controller manages the power coming from solar panels before it reaches the battery. It helps ensure safe and efficient battery charging while protecting the battery from overcharging, excessive discharge, and other common electrical issues.
2. How many watts can a 10A PWM charge controller handle?
The wattage a 10A PWM charge controller can support depends on the battery system voltage:
- 12V system: Up to 240W (10A × 12V)
- 24V system: Up to 480W (10A × 24V)
To ensure safe and efficient operation, the total solar panel capacity should generally remain within these limits. Always refer to the product specifications for the recommended solar panel size and operating conditions.
Formula:
Maximum Solar Panel Wattage = Controller Current Rating (A) × Battery Voltage (V)
3. Can I use this PWM charge controller with my existing home inverter?
Yes. This solar charge controller works with most standard inverter and battery setups. It allows solar panels to charge the battery while your inverter continues to power your home as usual.
4. Does this charge controller work automatically?
Yes. Once installed, it automatically manages charging, voltage detection (12V/24V), and battery protection without manual adjustment.
