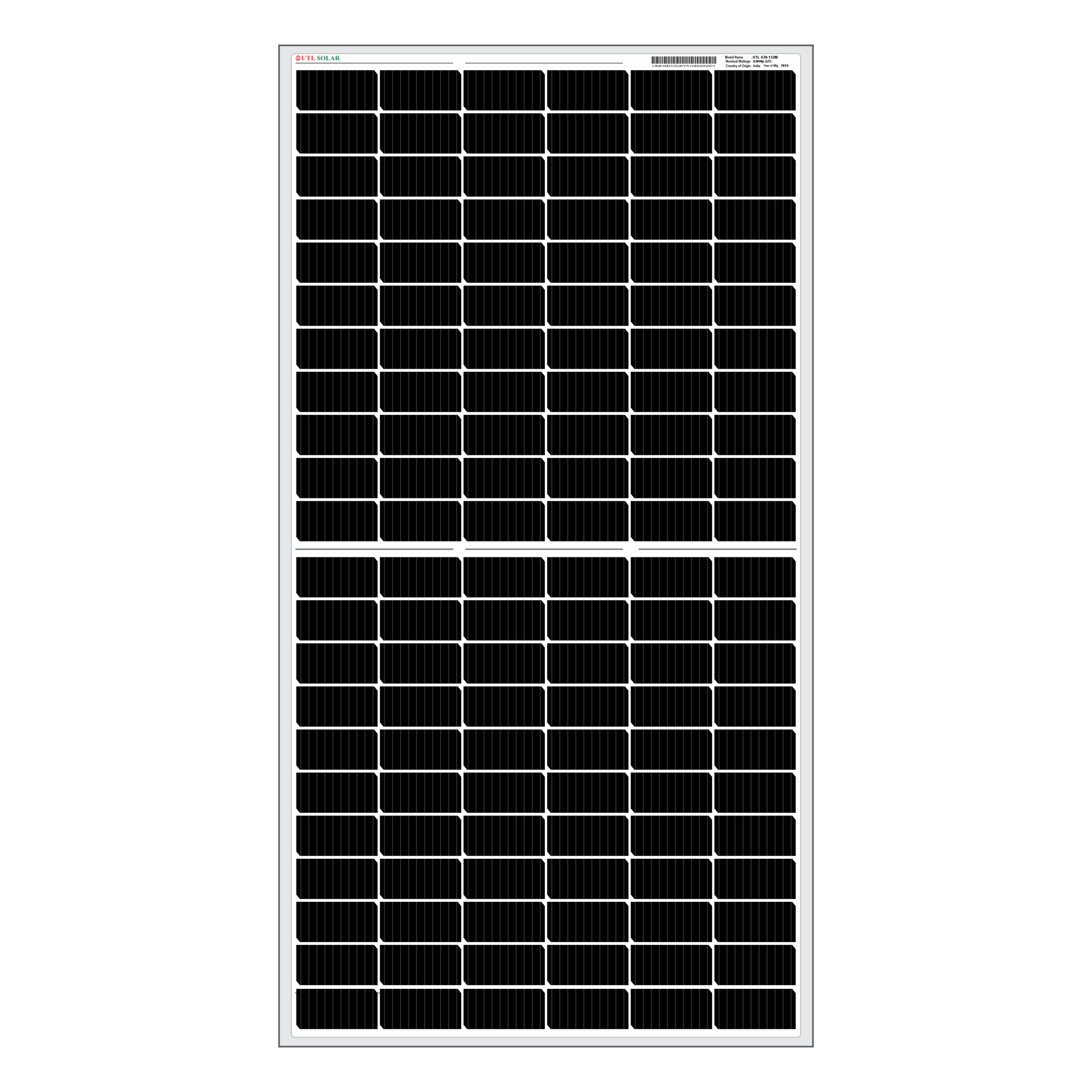

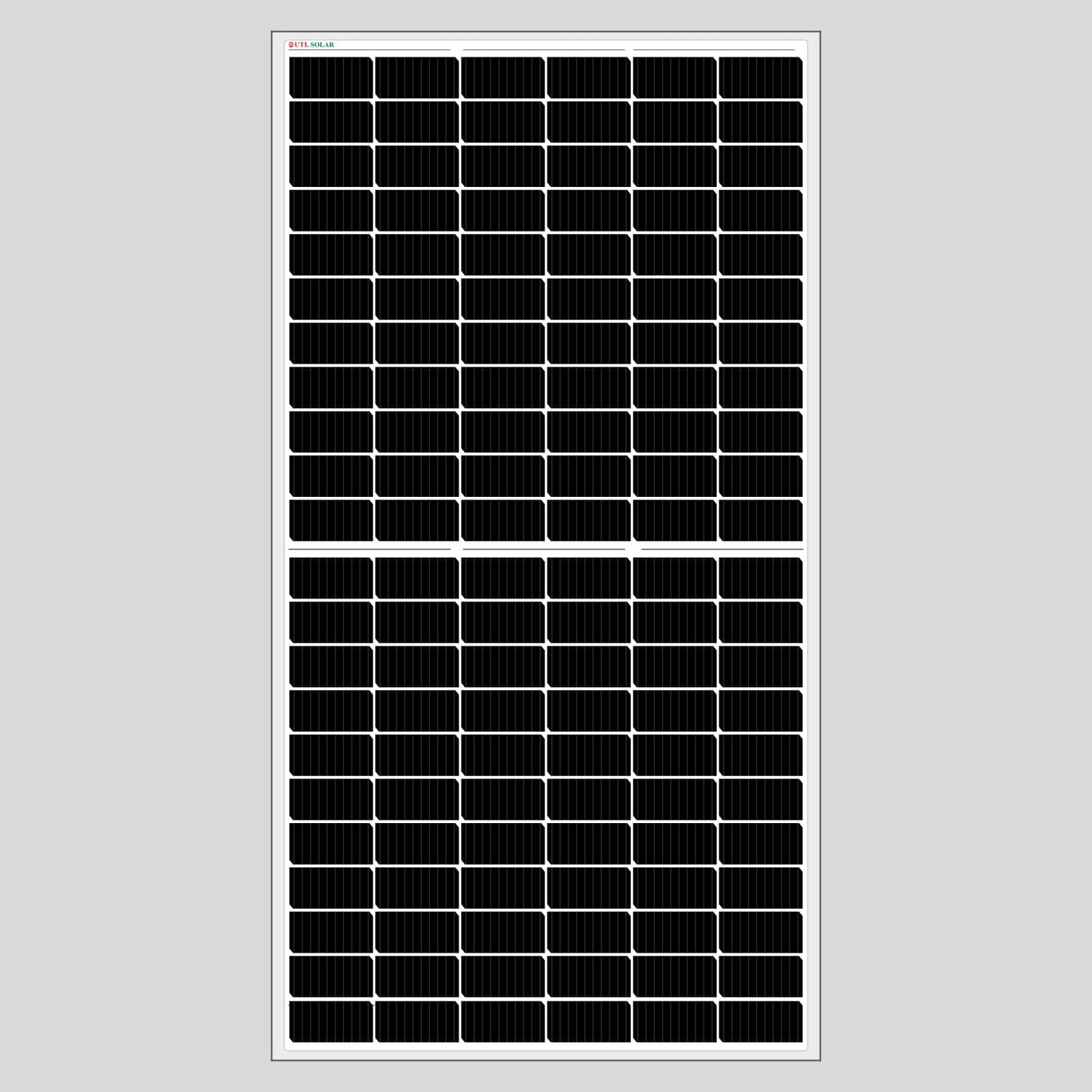

630Wp G12R TOPCon Bifacial Solar Panel (Non-DCR)

Built for utility-scale, commercial, and industrial solar projects, the UTL 630Wp G12R TOPCon Bifacial Solar Panel delivers high power output, excellent efficiency, and long-term energy generation. Designed with advanced G12R N-Type TOPCon cell technology and bifacial architecture, this module captures sunlight from both the front and rear sides to maximize energy yield.
The rectangular G12R cell design allows higher power density while maintaining practical module dimensions, making it an ideal choice for ground-mounted projects, open-access plants, captive solar installations, and large commercial rooftops.
With up to 23.32% module efficiency, a 1500V system voltage rating, and a robust 30-year performance warranty, this panel is engineered for reliable performance in demanding environmental conditions.

High-Power N-Type TOPCon Technology
The panel utilizes 132 G12R N-Type TOPCon half-cut cells to achieve a rated output of 630Wp. N-Type cells offer lower degradation, improved temperature performance, and higher energy generation compared to conventional technologies.

Bifacial Energy Generation
The bifacial glass design allows the module to generate electricity from reflected sunlight on the rear side, increasing total energy production depending on installation conditions and surface reflectivity.

Optimized for Large-Scale Projects
With a maximum system voltage of 1500VDC and operating current of 15.29A, the module supports modern high-voltage string designs, helping reduce BOS costs and improve project economics.

Durable Construction
The panel features:

• • High-strength tempered ARC glass
  • Anodized aluminum alloy frame
  • Split junction box with 30A rating
  • MC4-compatible connectors

These components ensure reliable operation even in challenging outdoor environments.

Excellent Temperature Performance
The advanced TOPCon architecture maintains strong performance during high-temperature operation, helping improve energy yield in hot climates.

Long-Term Reliability

• • • 1% degradation in the first year
    • Only 0.4% annual degradation from year 2 to year 30
    • 30-year linear performance warranty

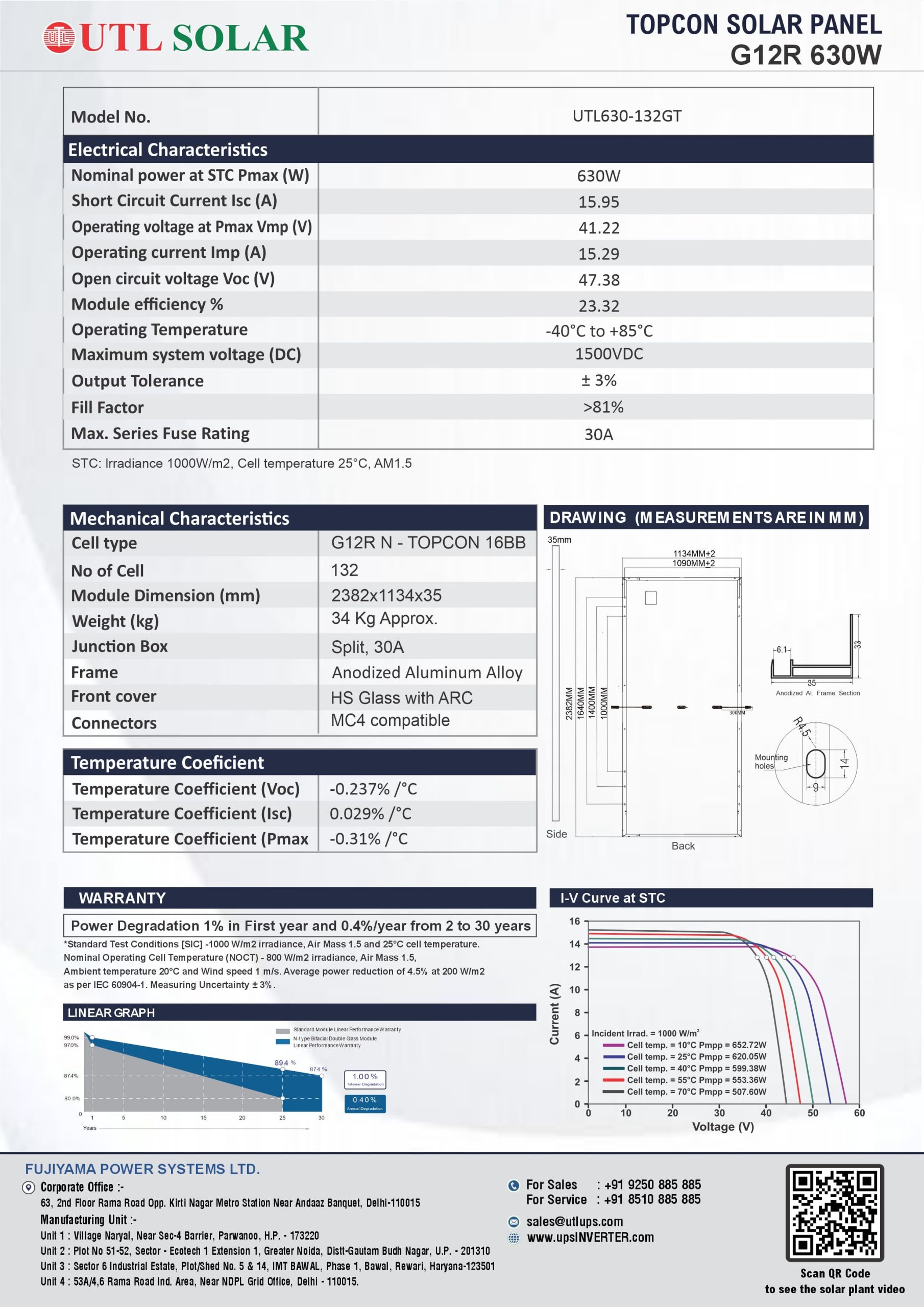

Key Features

✔ 630Wp High Power Output
✔ G12R N-Type TOPCon 16BB Cell Technology
✔ Bifacial Double-Glass Design
✔ 132 Half-Cut Cells
✔ Up to 23.32% Module Efficiency
✔ 1500VDC System Compatibility
✔ Low Annual Power Degradation
✔ Excellent Low-Light Performance
✔ Enhanced Temperature Performance
✔ MC4 Compatible Connectors
✔ Suitable for Utility, C&I, and Ground-Mounted Projects

Application

• • Utility-Scale Solar Power Plants
  • Open Access Projects
  • Captive Power Projects
  • Industrial Rooftops
  • Commercial Buildings
  • Warehouses
  • Manufacturing Facilities
  • Solar EPC Projects
  • Ground-Mounted Installations
