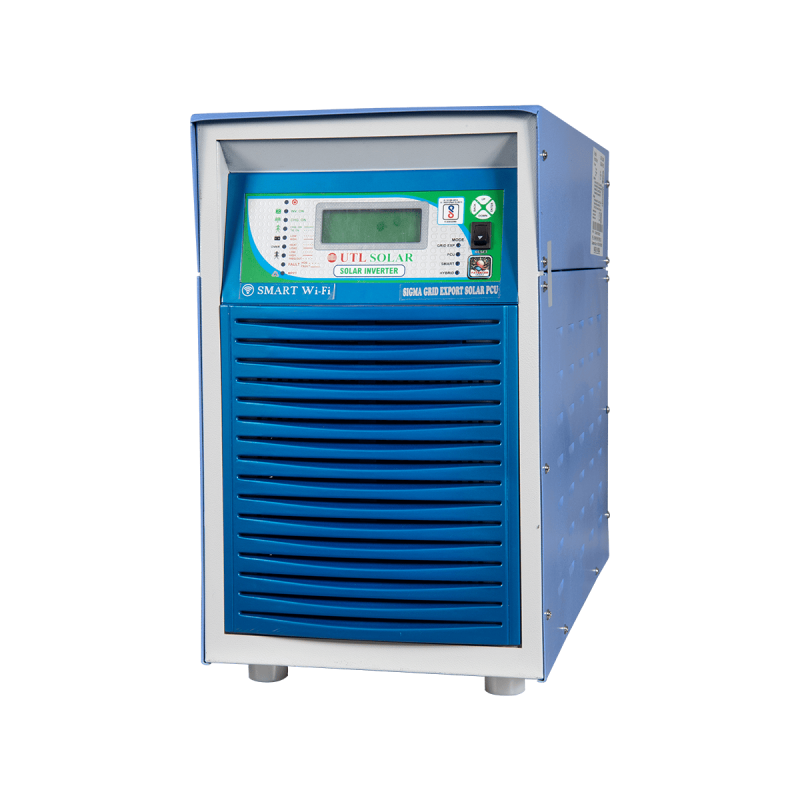

UGE 3024| SIgma Pro 3kVA/24V Hybrid Grid Export Solar PCU

Module Type UGE-3024
Inverter Technology rMPPT
Phase One Phase In – One Phase Out
System Rating 3kVA
Battery Support Lithium-ion & Lead-acid
Warranty 5 Years Warranty
Remote Monitoring GPRS / WiFi / Bluetooth / 4G / LAN
Display LCD
Guaranteed Safe Checkout

If you’re looking for a powerful, intelligent, and future-ready solar inverter, the UTL Sigma Pro 3kVA/24Volt solar hybrid inverter is built for you.With a 3kVA capacity and 24V battery support, this Hybrid Solar PCU doesn’t just store solar power — it knows exactly how to use it. Thanks to the UTL patented rMPPT technology with 95% charging efficiency, you get maximum energy from your solar panels, even in low-light conditions.

The Sigma Pro SGE-3024 offers multiple operating modes – Smart Mode, Hybrid Mode, PCU Mode, and Grid Export Mode – so you can prioritize solar power, save on electricity bills, or even earn credits by exporting surplus energy back to the grid.

It’s loaded with advanced protections against overload, short circuit, over/under voltage, and reverse polarity – ensuring both safety and long life. And with pure sine wave output, it keeps even your most sensitive appliances running smoothly.
The Sigma Pro SGE-3024 gives you the perfect balance of efficiency, reliability, and versatility to power your home, shop, small office, or other solar setups.

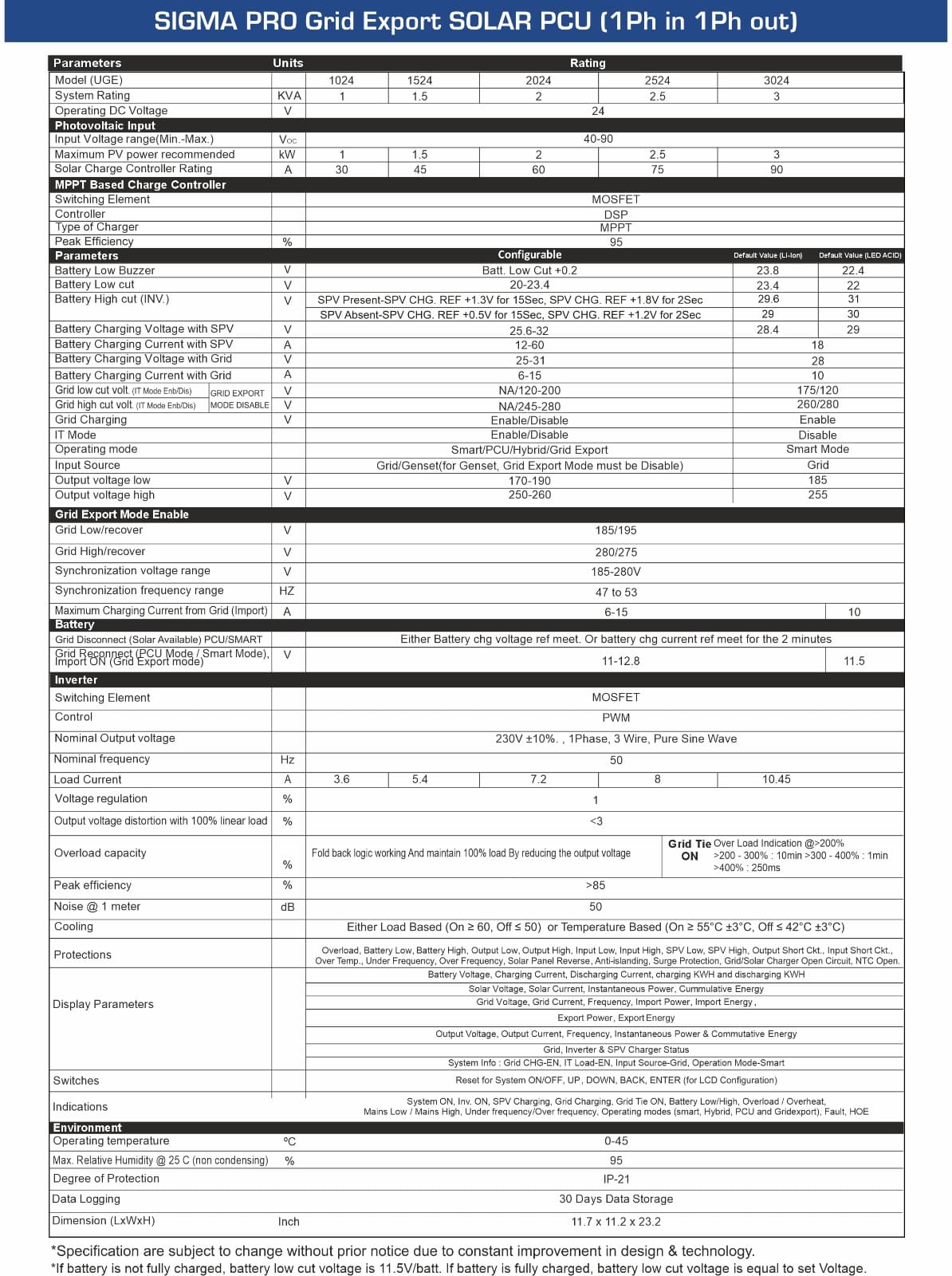

Technical Specifications

Parameters Rating
Operating DC Voltage 24V
Max PV Power Recommended 3kW
Solar Charger Controller Rating 60A
Peak MPPT Efficiency 95%
Max Charging Current from Grid (Import) 10A
Nominal Output Voltage 230 V ±10%
Nominal Frequency 50 Hz
Load Current 10.45 A
Voltage Regulation ±1%
Output Distortion @ 100% Load <3%
Noise @ 1 meter 50 dB
Dimensions (L×W×H) 297 × 279 × 584 mm
Data Logging 30 Days

Data Sheet

HYBRID CATALOGUE specification
HYBRID CATALOGUE specification
