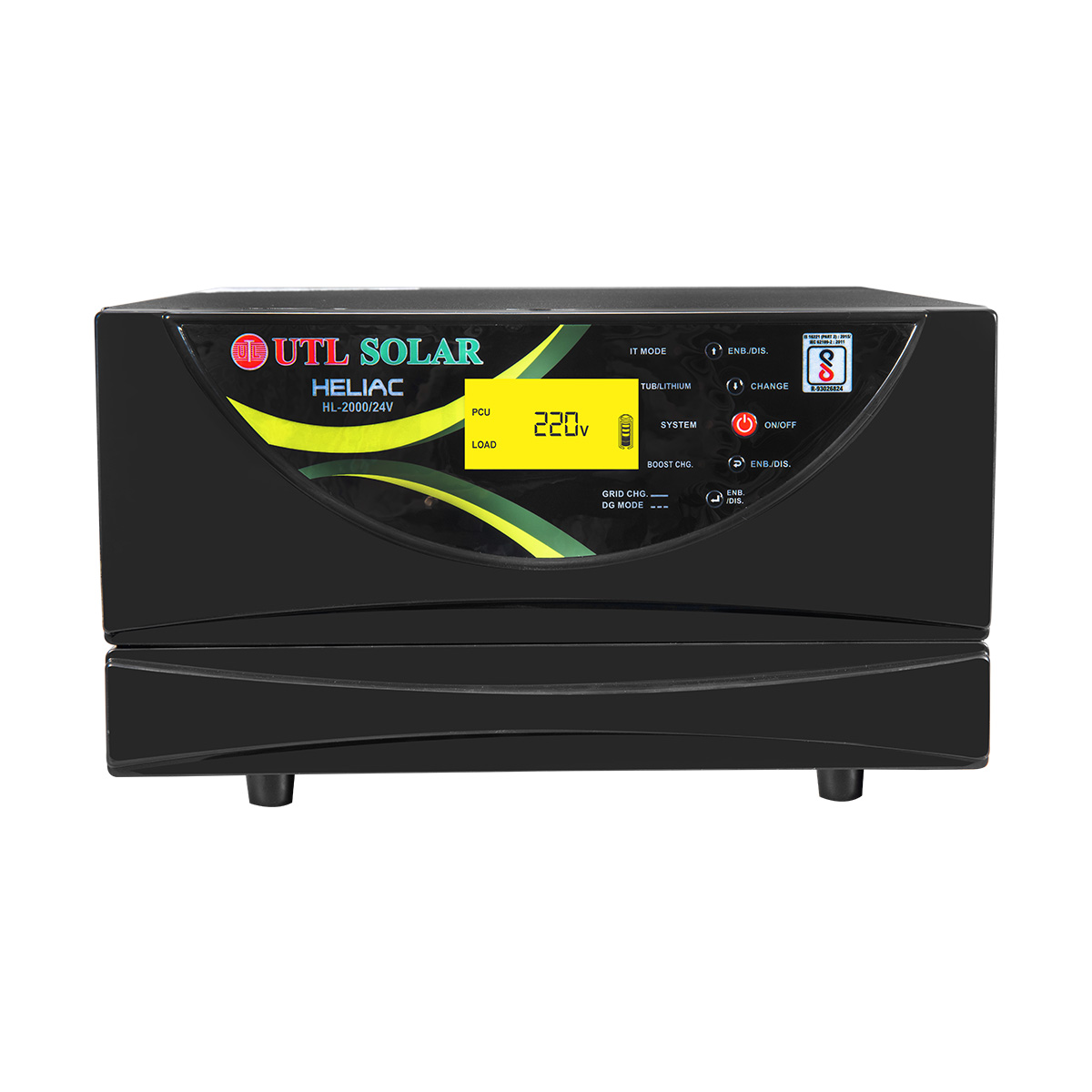

Heliac Solar Inverter 1500va/24v (HL2000)

9,592.00 (Inclusive of all Taxes)

Model HL2000
Max Solar panel Recommended 1200 Watt
Warranty 3 Years
Output Waveform Pure Sine Wave
System Rating 1000VA
Charge Controller PWM Technology
System Voltage 24V

20 in stock

Description

Heliac Home Inverter – Reliable Power Backup for Every Home

The Heliac Home Inverter is a reliable and efficient solution for uninterrupted power supply in modern households. Designed to meet everyday energy needs, it functions seamlessly as both a standard home inverter and a solar inverter. Whether you’re facing frequent power cuts or looking to reduce your electricity bills with solar energy, this inverter adapts to your setup with ease. Ideal for homes looking to switch to smarter, energy-efficient backup systems, the Heliac Home Inverter delivers consistent performance and long-term savings.

Key Features:

    • Inbuilt PWM Solar Charge Controller
    • Pure Sine Wave Output
    • Multi-Colour LCD Display
    • Solar Priority for Load & Charging
    • Supports Lithium, Gel & Tubular Batteries
    • Multi-Stage Battery Charging with Auto Equalization
    • Smart Mode Selection: PCU, Smart & Hybrid
    • Full System Protection
    • Compatible with DG Sets & IT Load
    • Smart Mode Selection: PCU, Smart & Hybrid
    • Full System Protection
    • Compatible with DG Sets & IT Loads

Specification

Particulars Description
System Rating 1500VA
Operating DC Voltage 24V
Nominal Grid Voltage 230V
Battery Low Buzzer 10.8V
Battery Low Cut 10.5V
Battery High Cut 16.5V
Grid Charging Voltage (Equalize) After 30Days
Grid Charging Current 12A/15A
Grid Reconnect @ Battery Voltage 11.8V
Output Phase 1 Phase
Nominal Output Voltage 220V±8%
Nominal Frequency 50Hz±1%
Output Waveform Sine wave
Typical Efficiency ≥85%
Maximum PV Power Recommended (315W/320W/325W)x4
Solar current min 3A (Below 3A, System will act like Solar Absent)
Protection Overload, Battery Low, Battery High, Output Short, Battery Reverse, Over Heat, Over frequency, Under Frequency, SPV High.
LED Indication System ON, (IT Mode, SMF/TUB, Boost Chg., DG Mode, Grid Chg.) Enable/Disable.
Switches Reset for System ON/OFF, UP, Down, Back, Enter(For LCD Calibration)
Standard Compliance IP20
Weight 15Kg
Dimension L x W x H 300x265x165 mm
