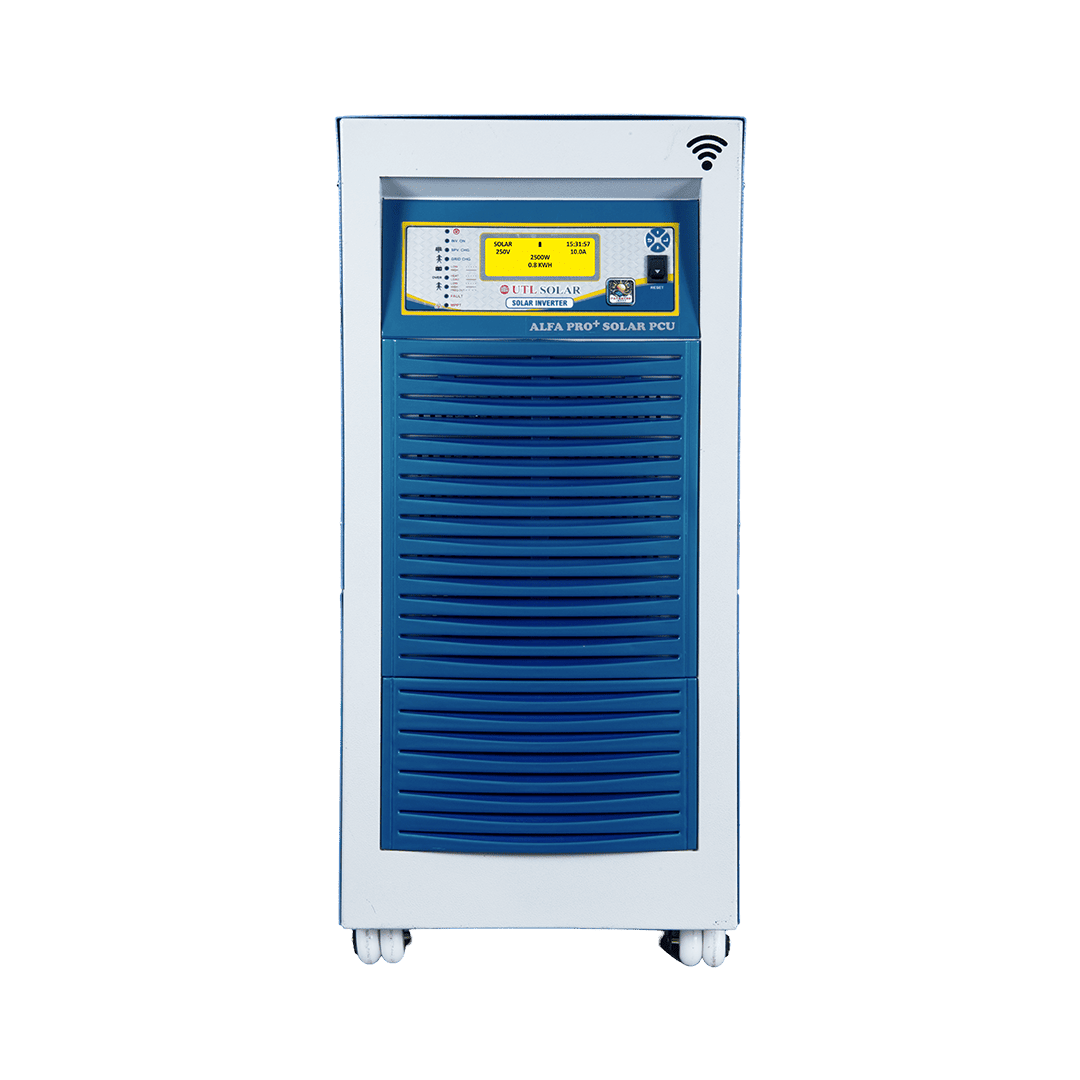

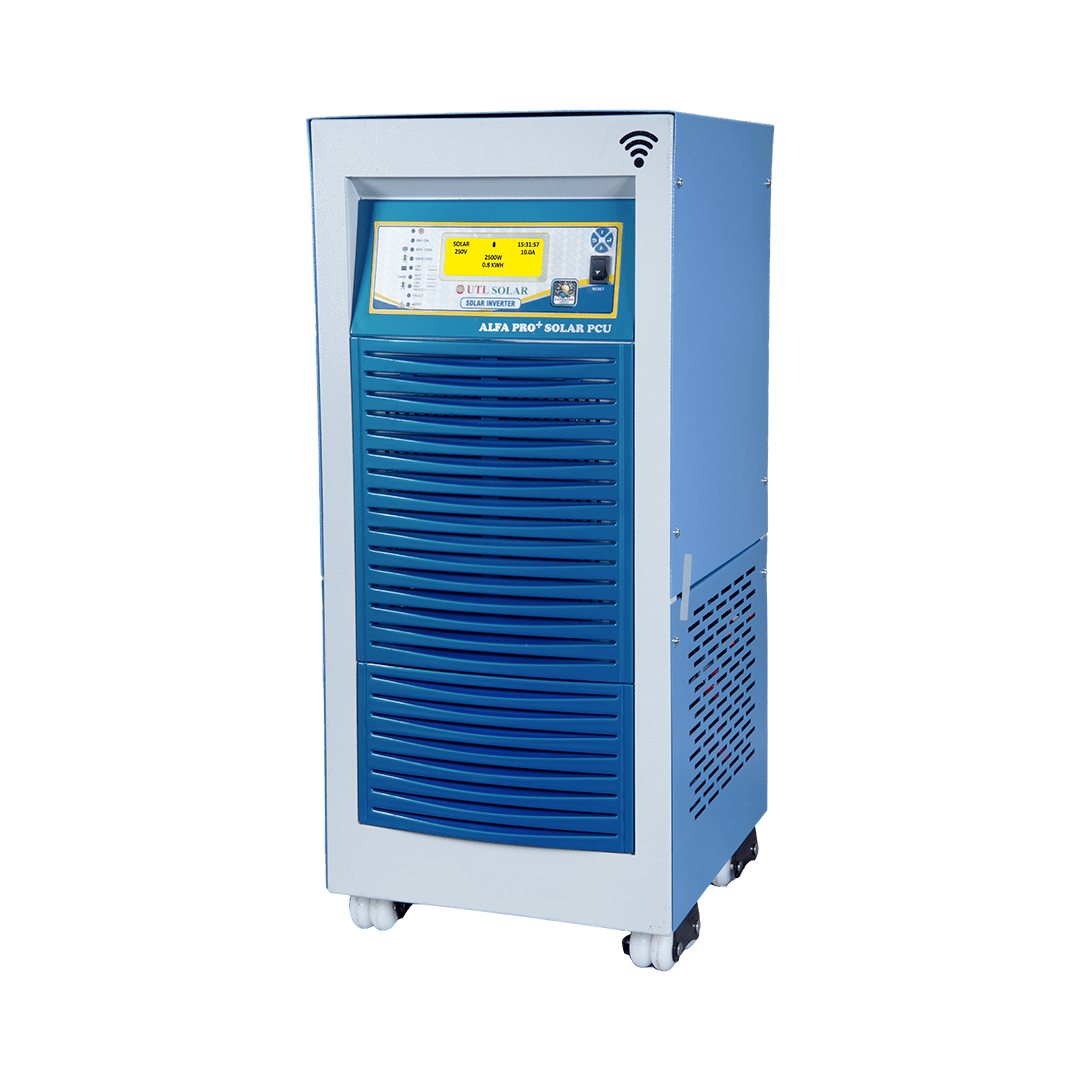

Alfa Pro+ 8120 Solar PCU with Pure Sine Wave Output
Original price was: ₹101,304.00.₹92,332.00Current price is: ₹92,332.00. (Inclusive of all Taxes)
Availability: 20 in stock
Availability: 20 in stock
Share
Easy Payment
EMI available
Free Delivery
No Refund Only Replacement
Alfa+ Solar PCU 7.5kVA/120V

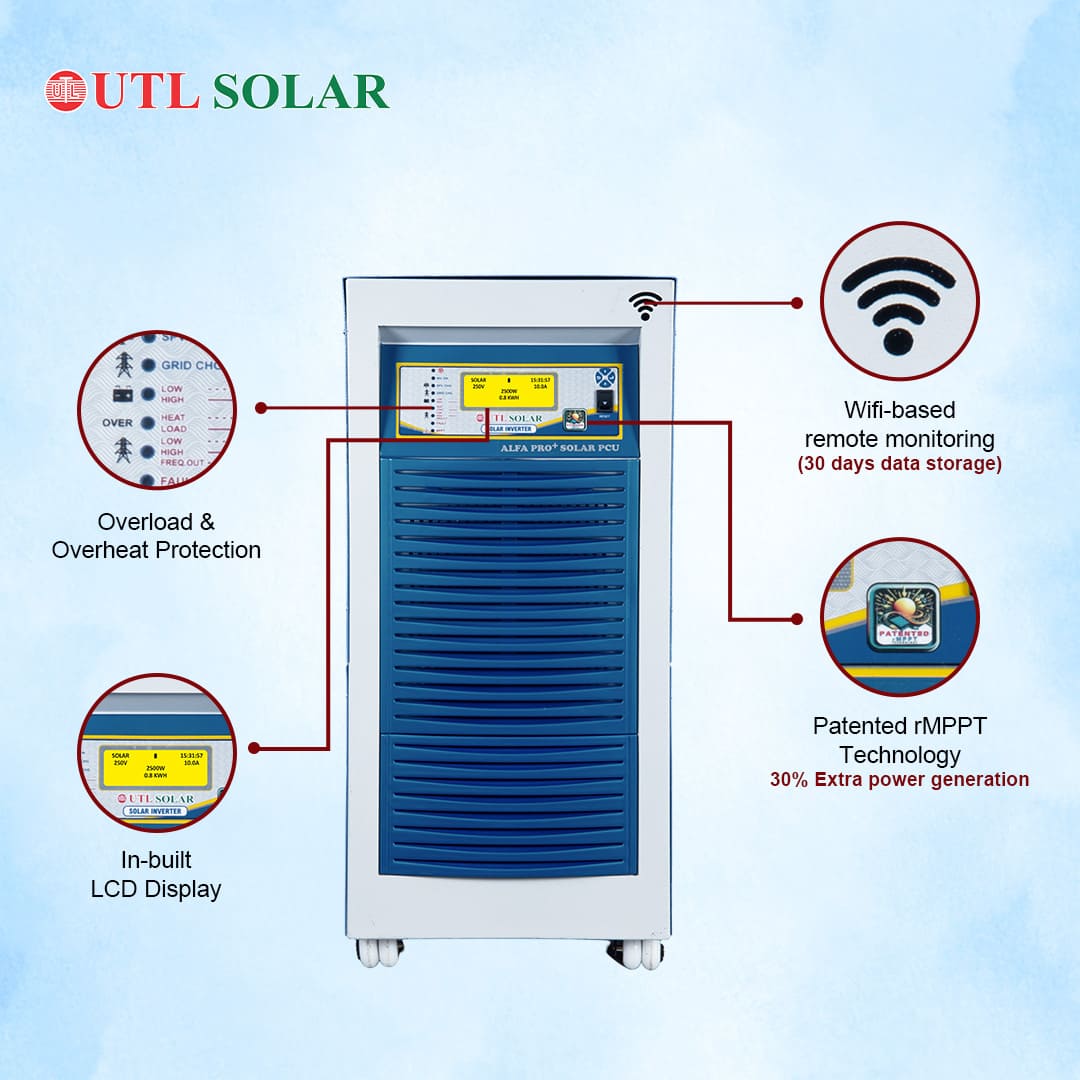

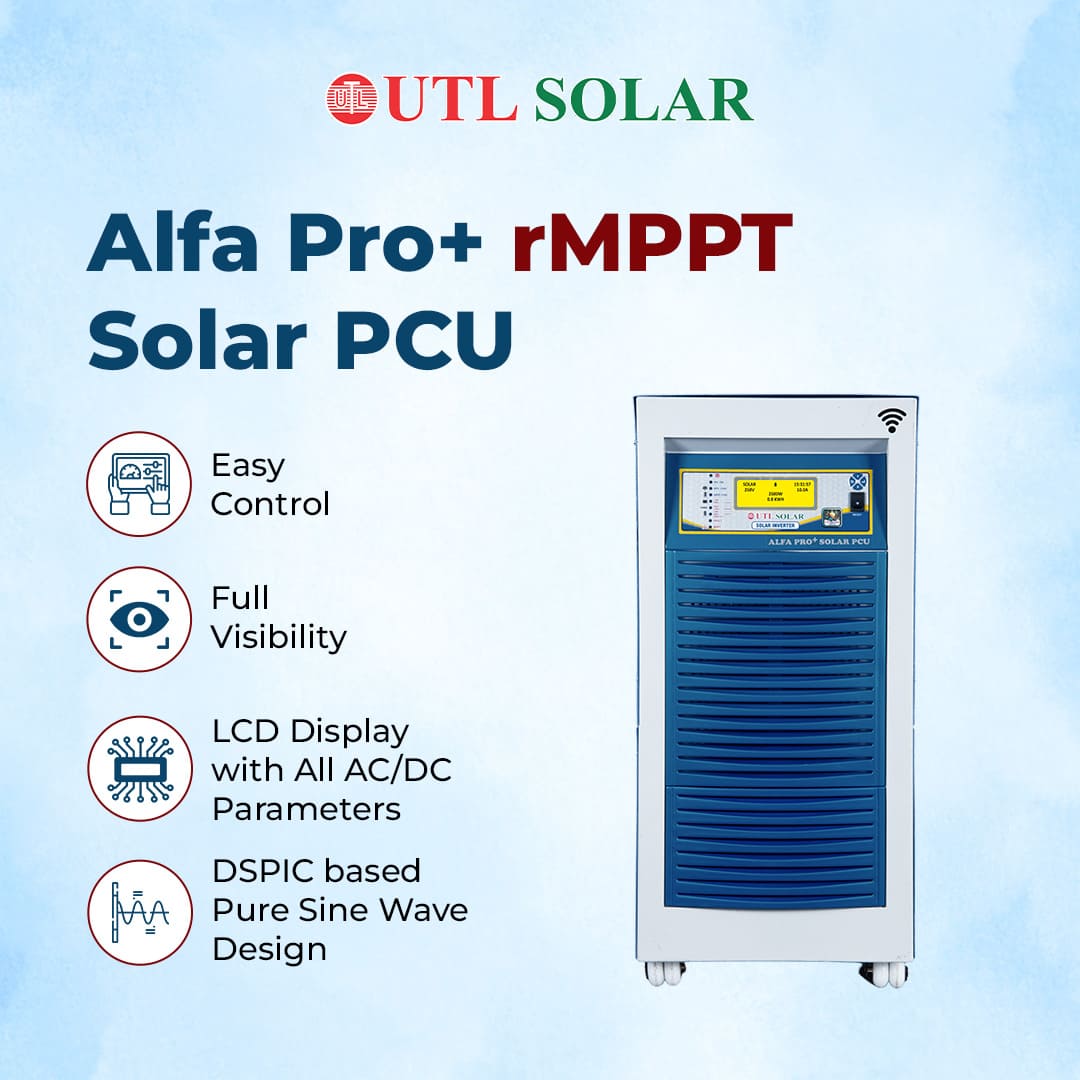

The 7.5kVA/120V Alfa Pro Plus rMPPT Solar home PCU is designed to maximize up to 30% extra power generation, helping lower electricity bills by reducing dependence on the grid. The pure sine wave output provides a smooth, continuous flow of electricity, closely matching the power from the utility grid for reliable and safe operation of your devices. It ensures that voltage and current change gradually, without sudden spikes, dips, or irregular patterns.
The multiple working modes (Smart, PCU, Hybrid) allow you to choose the most efficient power source combination according to your energy needs. Reverse AC voltage protection features ensure the safety of your system from accidental reverse voltage connections.
| Model No | APP8120 |
| System Rating | 7.5kVA |
| Operating DC Voltage | 120V |
| Warranty | 3 Years |
| Weight (Approx) | 80 Kg |
| Dimension (LxWxH) | 24 X 13 X 23(Inch.) |

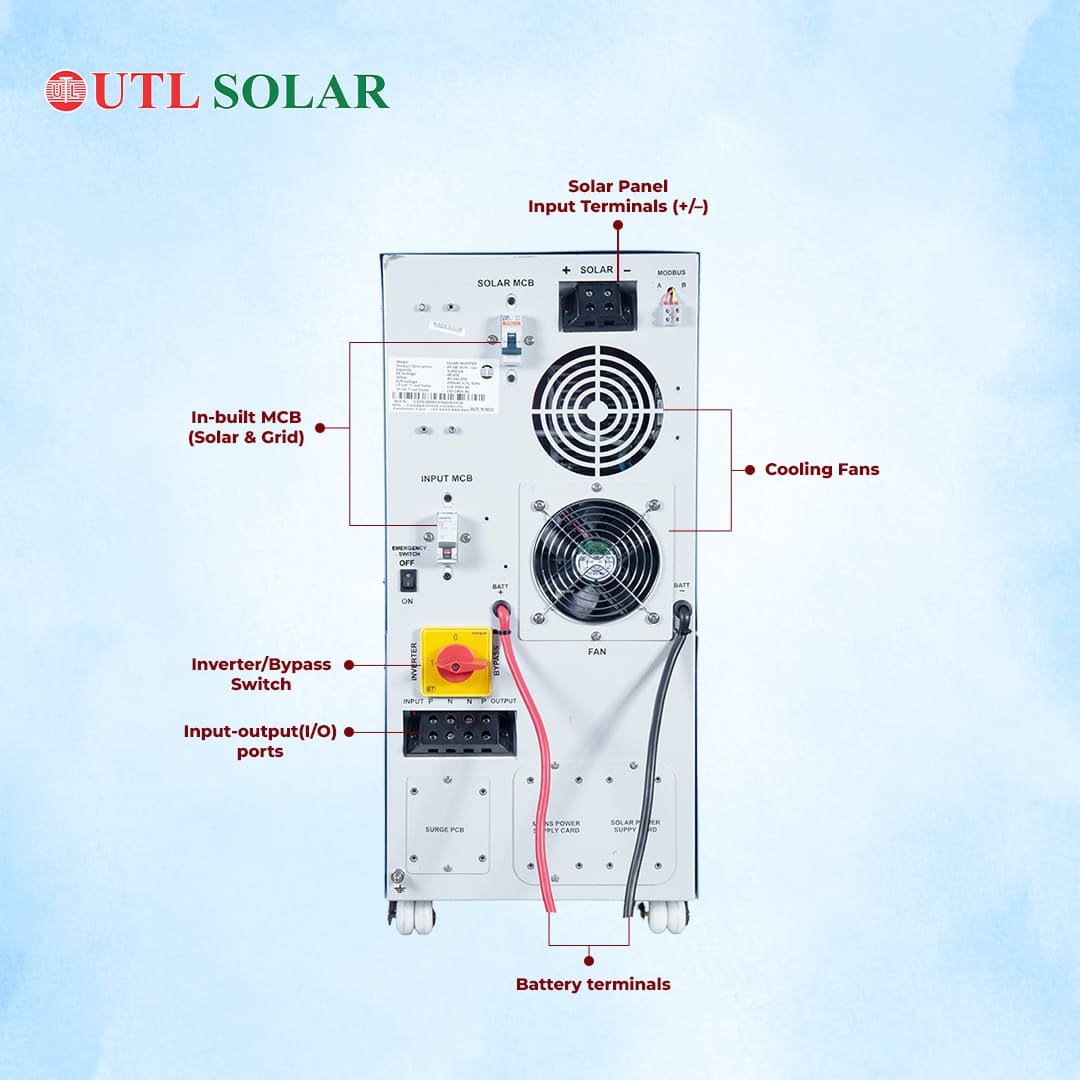

| Switches | Reset for System ON/OFF, UP, DOWN, BACK, ENTER (for LCD Configuration) |
| Technology | rMPPT |
Specifications
Technical Specification
| Grid Rec. (PCU Mode/ Smart Mode) | 11-12V |
| Peak Efficiency | >88% |
| Degree of Protection | IP21 |
| Input Voltage Range (Min-Max) | 200-400 VDC |
| Solar Charge Controller Rating | 60A |
| Maximum PV Power Recommended | 7.5KW |
| Inverter Switching Element | IGBT |
| No. of Cells | 38 |
| Noise @ 1meter | 50dB |
| Operating Temperature | 0-50°C |
Frequently Asked Questions
What makes the UTL Alfa Pro+ Solar PCU different from other solar PCUs?
How does the rMPPT technology help me save money?
Can I expand my solar system in the future?
How noisy is the Alfa Pro+ during operation?
Can I use this PCU in areas with unstable grid voltage?
