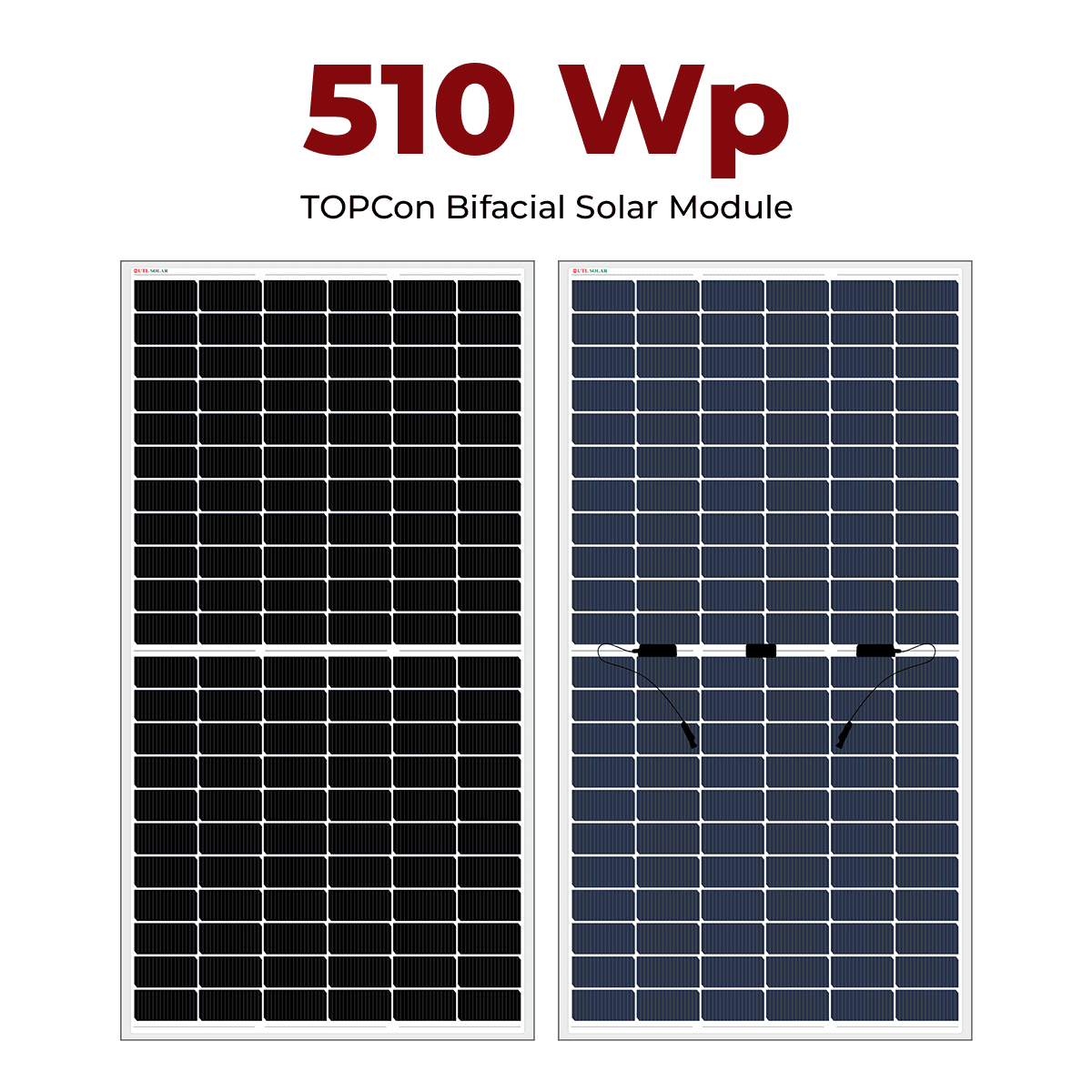

510 Watt/24 Volt Bifacial N-Type TOPCon Solar panel (Pack of 2)

Module Type UTL510-132BT
Maximum Power 510Wp
Efficiency 21.28%
No. of Cells 132 Multi BB TOPCon Solar Cells
Product Warranty 10 years
Output Warranty 27 years
Size(in mm) 2115 x 1133 x 35
Weight 26.50 KG
Guaranteed Safe Checkout

510 Watt/24 Volt Bifacial N-Type TOPCon Solar panel

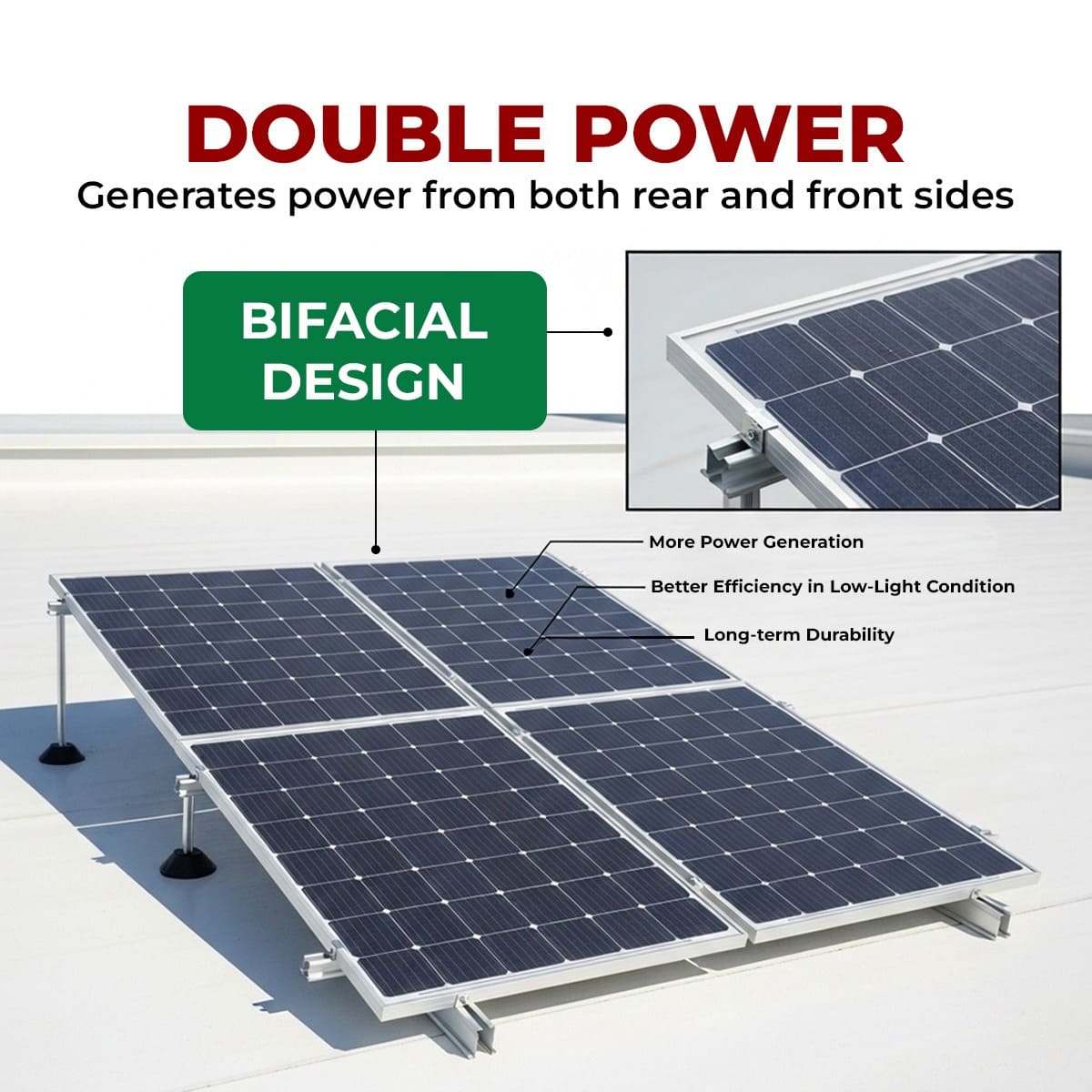

The UTL 510W Bifacial TOPCon Solar Panel combines high power output, advanced cell technology, and long-term performance—all optimized for Indian conditions. Built with N-Type TOPCon cells and bifacial architecture, it captures sunlight from both sides, enabling higher energy generation on rooftops with reflective surfaces like concrete or white-painted sheets.

With a power rating of 510W and a module efficiency of 21.28%, this solar panel allows you to achieve more output from less roof space. Whether you’re designing a compact rooftop system or scaling up a large solar project, the UTL 510W Bifacial TOPCon panel reduces BOS (Balance of System) costs, improves energy yield, and delivers long-term value.

Technical Specifications

Parameters Specifications
Power Tolerance ±2%
Rated voltage – Vmp(V) 39.54
Rated current – Imp( A) 12.90
Short circuit current – Isc( A) 13.47
Open circuit voltage – Voc(V) 46.11
Max Fuse Rating 35A

Mechanical Characteristics



Parameters Specifications
Encapsulation Transparent Backsheet
Frame Silver Anodized Aluminium Alloy
Front Glass 3.2 mm, High Transmission, AR Coated Tempered Glass
Junction Box IP68 certified, 3 diodes, Split junction box
Cables 4 mm², 300 mm solar cable (customizable length)
Connectors MC Type
Application Class Class A
Electrical Safety Class II
Fire Safety Rating Class C (Type 1)
Mechanical Load Capacity Snow: 5400 Pa, Wind: 2400 Pa

FAQs

What is TOPCon technology, and how does it benefit?

TOPCon (Tunnel Oxide Passivated Contact) is a next-gen N-Type cell technology that offers higher efficiency, better temperature performance, and lower degradation over time—resulting in more units generated per panel across its lifespan.

How much electricity can I expect from a 510W bifacial panel in real conditions?

Under optimal sunlight, a 510W panel can generate around 2.3–2.6 kWh per day. With bifacial gain and reflective surface installation, output can be even higher. Actual generation depends on location, tilt, shadow, and inverter efficiency.



What makes bifacial solar panels better than monofacial panels?

Bifacial panels generate electricity from both the front and rear sides by capturing reflected sunlight. This can boost energy output by up to 15–25%, especially when installed over reflective surfaces like concrete or metallic roofs.

How is N-Type TOPCon different from traditional P-Type solar panels?

N-Type TOPCon panels like this one have lower light-induced degradation (LID), better thermal performance, and longer lifespan—making them more reliable and cost-effective over time compared to conventional P-Type panels.

What type of surface gives the best rear-side gain for this bifacial panel?

Surfaces like white-painted concrete, light-colored reflective tiles, or rooftops with reflective sheets offer better rear irradiance, increasing total energy generation..

How many UTL 510W panels do I need for a 5kW system?

You would need approximately 10 panels (510W × 10 = 5.10kW) to build a 5kW solar system. The exact number may vary depending on inverter specs and system losses.
