UTL SNPFC 48V 18A E-Rikshaw Battery Charger
| Model | SNPFC 48V–18A (NPFC) |
| Rated Output Voltage | 48V DC |
| Charging Current | 18A |
| Compatible Battery Capacity | 100–150 Ah |
| Peak Efficiency | 88% |
| Weight | 3.1 kg |
| Warranty | 24 Months |
High-Efficiency Charger for E-Rickshaw & Industrial Battery Systems
The SNPFC 48V-18A Battery Charger from UTL Solar is a robust, high-efficiency charging solution designed for 48V lead-acid and tubular battery banks. Built with NPFC topology, wide AC input tolerance, and advanced protection circuits, it ensures safe, stable, and reliable charging even in fluctuating grid conditions—making it ideal for e-rickshaws, electric mobility, and industrial applications.
Key Highlights
- 48V DC output with 18A regulated charging
- Wide AC input range (170–280V) for unstable grids
- NPFC design for improved efficiency & reliability
- 88% peak efficiency
- Built-in overload, short-circuit & thermal protection
- CAN communication support (Lithium compatible)
- Fan-cooled metallic enclosure
- 24-month warranty

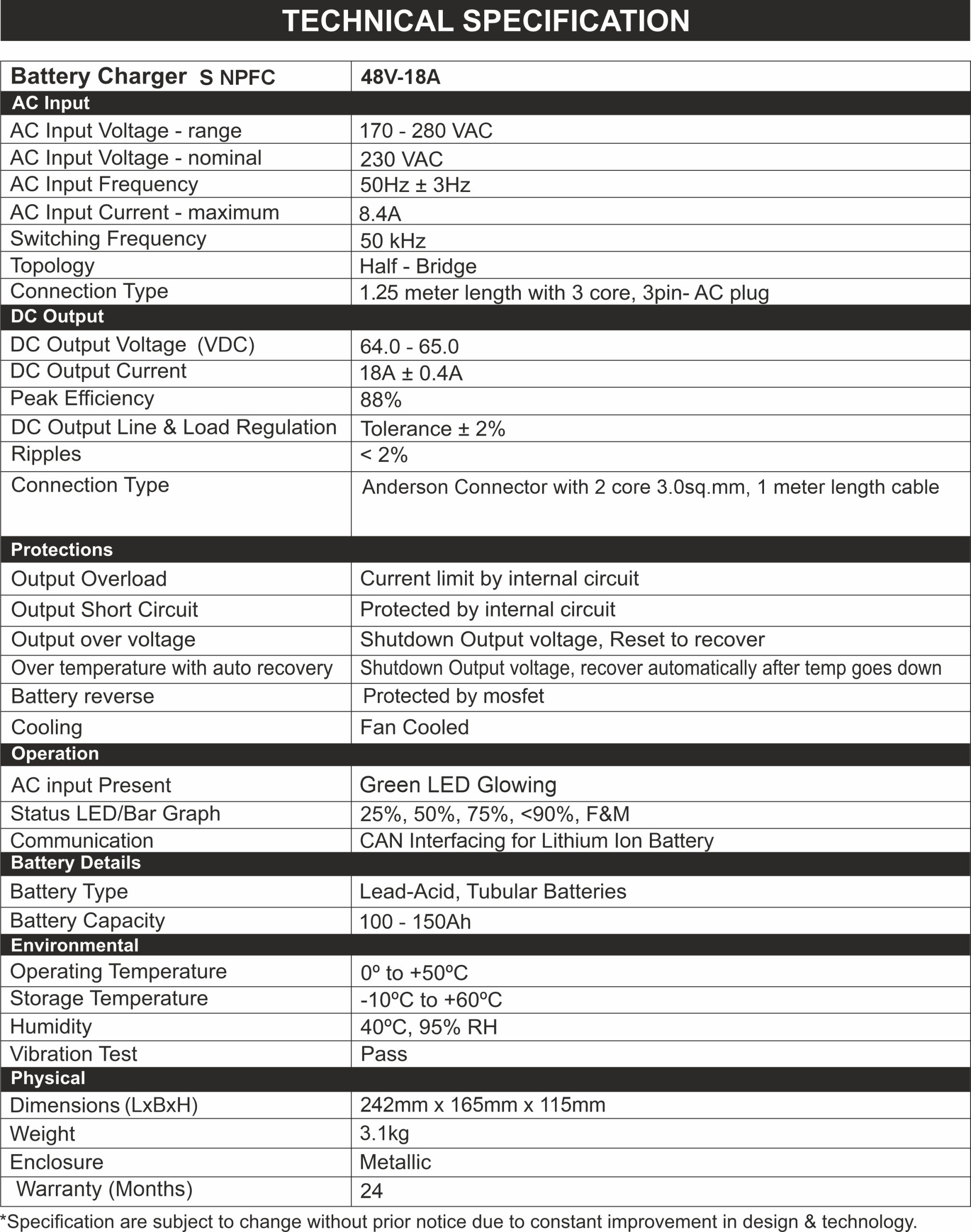

Specification
Technical Specification
| Specification | Value |
| AC Input Voltage Range | 170 – 280 VAC |
| Nominal AC Voltage | 230 VAC |
| AC Input Frequency | 50 Hz ± 3 Hz |
| Maximum AC Input Current | 8.4 A |
| DC Output Voltage Range | 64.0 – 65.0 VDC |
| Line & Load Regulation | ±2% |
| Output Ripple | < 2% |
| Topology | Half-Bridge |
| Cooling Method | Fan Cooled |
| Protections | Overload, Short Circuit, Over Voltage, Over Temperature |
| Operating Temperature | 0°C to +50°C |
Application
- E-Rickshaw Battery Charging
- Electric three-wheelers
- Battery swapping stations
- Industrial battery banks
- Solar-based charging systems
- Fleet & mobility hubs
- Backup battery charging for telecom & utilities
Why Choose This Charger?
- Designed for Indian power conditions
- Stable charging improves battery life
- Compact, rugged & service-friendly
- Suitable for continuous daily operation
- Backed by UTL’s nationwide support network
