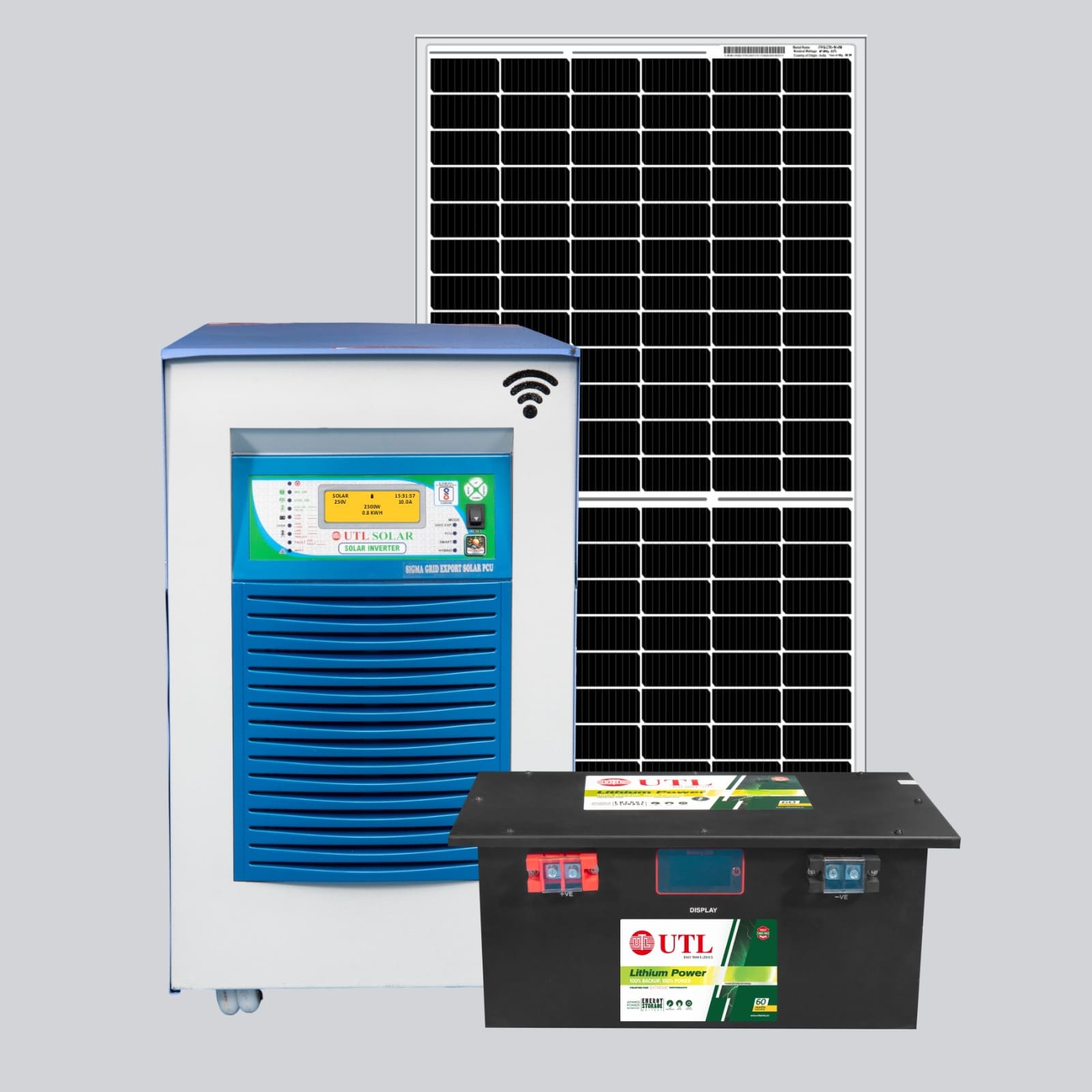

3kW/24V Hybrid Solar Combo | UGE3024 | 540W Mono DCR(Bi-facial) Solar Panel | 51.2V/100AH LiFePO4 Battery
Original price was: ₹281,696.00.₹200,685.00Current price is: ₹200,685.00. (Inclusive of all Taxes)
27 YEARS PERFORMANCE WARRANTY
| Solar Inverter | UGE3024 – Sigma Pro 3kVA/24V rMPPT Hybrid Solar PCU |
| Inverter Model | UGE3024 |
| Inverter warranty | 5 years |

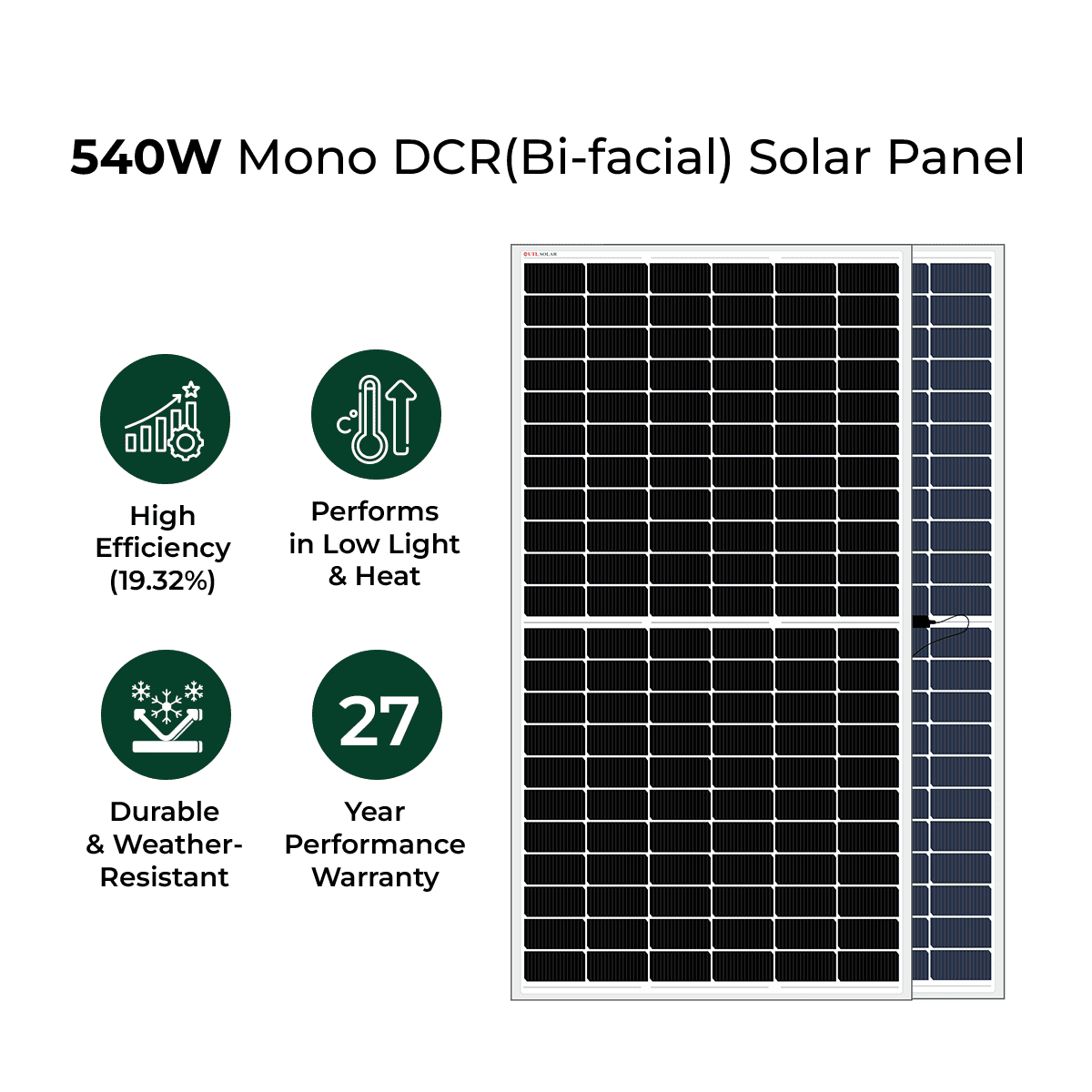

| Solar Panel | 540W DCR Mono Bi-facial Module X 6 Nos. |
| Solar Panel Performance Warranty | 27 years performance warranty |
| Solar Panel Product Warranty | 10 years |
| Battery | ULIBES-51.2V100AH-LP100PM Lithium ion Battery |
| Battery Life | 10 Years |
| Daily Unit Generation | 12-15 Units Per day |
| Space Required | 180 Sq. Ft. – 210 Sq. Ft. |
| Installation Materials | ACDB & DCDB Box Lightning Arrester Earthing Materials HDPE Conduit MC4 Connectors |
Availability: 20 in stock
Availability: 20 in stock
Share
Easy Payment
EMI available
Free Delivery
No Refund Only Replacement
3kW/48V Hybrid Solar System
Want to save electricity bills, get backup during power cuts, and avail subsidy from the government at the same time? The 3 kW/24 Volt hybrid solar power generating system(SPGS) is your ultimate allround power solution. It’s a featureful, long lasting, and sustainable solar solution that comes with a combination of top quality DCR solar panels, rMPPT solar hybrid inverter, and lithium ion battery with in-built smart BMS.
Solar Kit
Solar Kit Items
| Item No | Description of Items | Specification |
| 1 | SOLAR PV MODULE | 540W DCR Mono Bi-facial Module X 6 Nos. |
| 2 | UTL HYBRID INVERTER | Sigma Pro 3kW/24V |
| 3 | DCDB 1 IN 1OUT WITH SPD & FUSE | IP65 BOX, 20A DC Fuse for each string & (DC SPD II) 600V |
| 4 | ACDB 3 KW | 2 Pole 25 Amp MCB + AC SPD Type 2 + IP 65 Polycarbonate Enclosure |
| 5 | DC CABLE (Red & Black) | 1CX4 SQmm Cu. Flexible DC Cable |
| 6 | Inverter to ACDB (AC CABLE) | 2C*4 SQmm Cu. Flexible Cable |
| 7 | ACDB to LT PANEL (AC CABLE) | 2C*4 SQmm Cu. xlpe armoured cable |
| 8 | EARTHING ROD | GI earthing rod 2 mtr Length (50MM DIA) / Copper earthing rod 2 mtr Length rod (14MM DIA) |
| 9 | EARTHING CHEMICAL BAG | 25 kg earthing chemical bag |
| 10 | EARTHING CHAMBER | 300MM DIA |
| 11 | Earthing Cable for LA | 1C x 10 SQmm – Cu. Flexible Cable |
| 12 | Earthing Cable for DC & AC | 1C x 6 SQmm – Cu. Flexible Cable |
| 13 | Ring Type Thimble | 6SQMM |
| 14 | Ring Type Thimble | 10SQMM |
| 15 | PIN Type Thimble | 4 SQMM |
| 16 | PIN Type Thimble | 6 SQMM |
| 17 | SS304 Nut bolt with Washer | M8x30mm |
| 18 | HDPE Conduit (25 mm) | UV protected (25mm) |
| 19 | Elbow (25 mm) | UV protected (25mm) |
| 20 | T Bend (25 mm) | UV protected (25mm) |
| 21 | I bend (25 mm) | UV protected (25mm) |
| 22 | PU FOAM | PU foam bottle 750ml |
| 23 | Saddle | UV protected |
| 24 | Gitti | UV protected |
| 25 | Ferrul | Tube type ferrul |
| 26 | Screw | UV protected |
| 27 | Cable Tie – 300 | UV protected nylon Cable Tie |
| 28 | Danger Sign (AC+DC) | UV protector (UTL) |
| 29 | MC4 Connectors with pin | Solar Connector MC4 DC 1000V 30A IP67 Male-Female |
| 30 | Electrical Tape R,B,B,G | red-1, blue-1, black-1, green-1 |
| 31 | LA with HDG Stand | copper Bonded LA with 2 Mtr stand |
| 32 | Flexible Pipe | PVC Flexible Pipe 25mm |
Steps to Purchase
- Select the product variant that best meets your needs.
- Complete your order by making the payment based on the listed price.
- UTL Solar will connect you with an authorized Channel Partner for further assistance.
- The Channel Partner will request essential documents for verification.
- A convenient site visit will be arranged to assess your requirements.
- You will receive a detailed quotation covering installation charges, liaison fees, and any additional structural costs.
- The authorized Channel Partner will handle the installation with professionalism and care.
- Settle the installation and associated charges directly with the Channel Partner.
- Once the installation payment is complete, UTL Solar will promptly ship your product to your location.
Important Points to Remember
- Eligibility for subsidies will be subject to evaluation and approval.
- UTL Solar is responsible for the product only.
- UTL Solar will not be held accountable for installation services.
- Installation and maintenance services will be managed exclusively by the authorized Channel Partner.
- Structural, Net metering and installation charges are not included in the listed product price.
Order Cancellation Policy
- Orders can be cancelled before the product is shipped.
- A site visit fee of Rs. 750 will be deducted from the refund amount.
- Once the product has been dispatched, cancellations will not be accepted.
Warranty
Inverter: 5 years Onsite Warranty
Solar Panel:27 Years Performance Warranty
Battery: 60 Months*
Subsidy Details
Under the PM Surya Ghar Muft Bijli Yojna, residential Hybrid Solar Systems are eligible for a subsidy of up to ₹78,000.
Subsidy Structure
● 1kW – 2kW Hybrid Solar System → ₹30,000
● 3kW – 10kW Hybrid Solar System → ₹78,000
Terms & Conditions:
● Subsidy applicable for residential installations only.
● Maximum subsidy available up to 10kW.
● DCR (Domestic Content Requirement) solar panels must be used.
FAQs
How does a Hybrid solar system work?
A Hybrid solar system generates electricity from solar panels, stores excess power in batteries, and exports surplus energy to the grid. It ensures uninterrupted power supply by switching between solar, battery, and grid power as needed.
Does the system support lithium-ion batteries?
Yes, UTL Hybrid solar systems support lithium-ion batteries, offering better efficiency, faster charging, and longer lifespan.
Is subsidy available for Hybrid solar systems?
Yes, hybrid solar systems are now included in expanded rooftop solar schemes, and eligible for up to ₹78000 subsidy from the central government.
Can I run an AC with a 5kW Hybrid solar system?
Yes, you can run an inverter AC with limited usage. The runtime depends on battery capacity, solar generation, and other connected appliances.
