340 Watt TOPCon Bifacial Solar Panel (Pack of Two)

27 YEARS PERFORMANCE WARRANTY

solar panel warranty
Particular Description
Capacity Rating 340Wp
Module Type N-Type TOPCon
No. of Solar Cells 72
Warranty 27 Years on panel performance
Module Efficiency 20.98%
Glass Dual AR Coated Tempered Glass
Weight 18KG
Dimensions (L*W*H) 1430*1133*35

Share

Store Locator Calculator

Experience next-level solar performance with the UTL 340W TOPCon Bifacial Panel — a high-efficiency module that combines cutting-edge cell technology with rugged construction for consistent power throughout the year. Engineered with advanced N-Type TOPCon half-cut cells and 16-busbar technology, this panel is designed to deliver superior power output, improved temperature performance, and enhanced reliability across a wide range of real-world weather conditions.
The bifacial design enables the module to generate electricity from both the front and rear sides, capturing reflected sunlight to increase total energy yield. This makes the panel especially effective for rooftops, open areas, and installations with high ground reflectivity. Its high-transmission, AR-coated tempered glass and transparent backsheet ensure excellent durability, while providing strong resistance to PID, UV degradation, moisture, and thermal stress.
Supported by a robust anodized aluminum frame and IP67-rated junction box, the UTL 340W TOPCon panel is built to withstand heavy wind loads up to 2400 Pa and snow loads up to 5400 Pa, offering long-term structural integrity in challenging environments. With a low annual degradation rate of just 0.4% after the first year, it ensures dependable generation and stable performance for up to 27 years.

Specifications

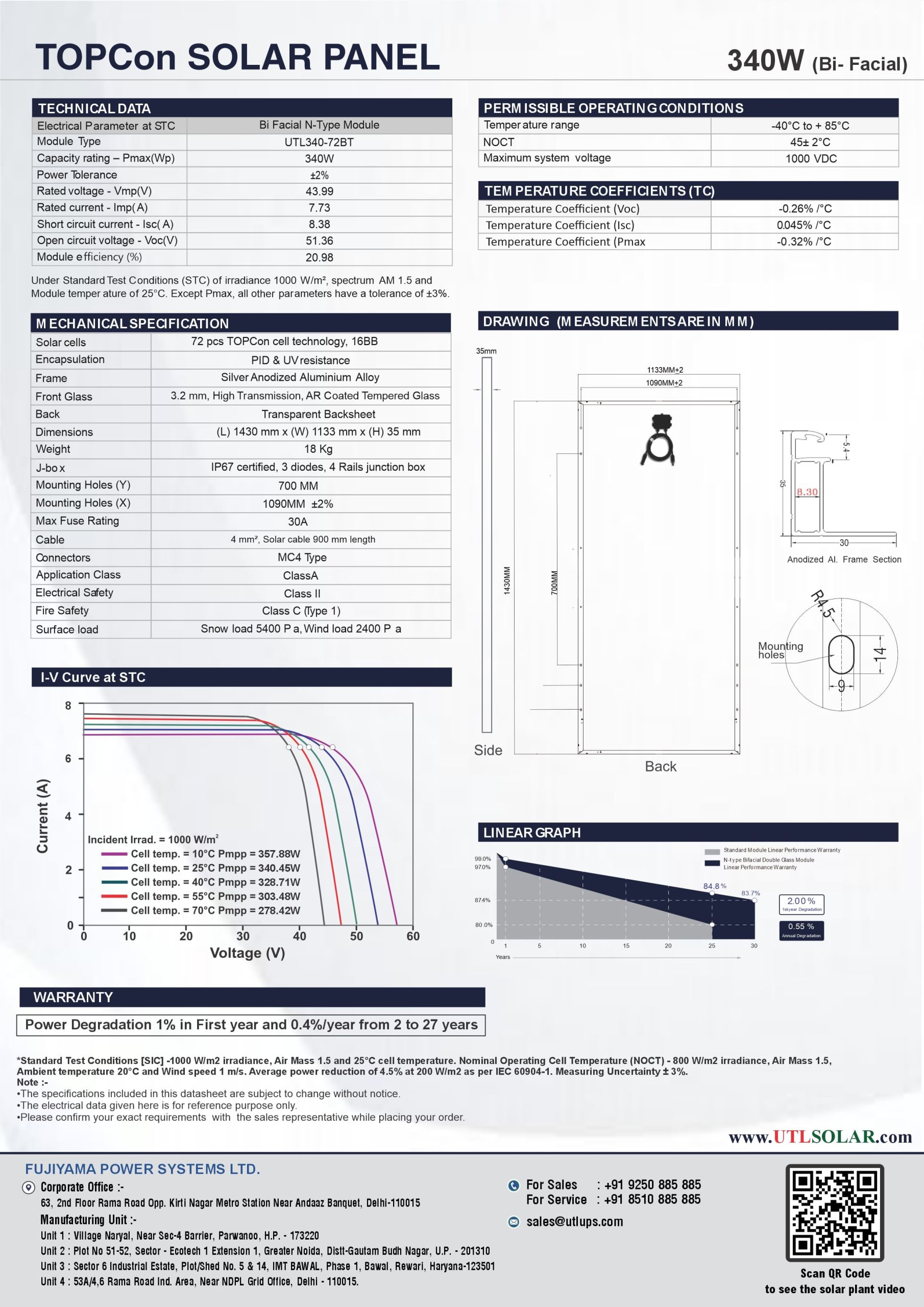

Specification of Solar Panel 580 Watt Topcon Half-Cut
Specification of Solar Panel 340 Watt Topcon

Technical Specification

Particular Description
Temperature Range -40°C to +85°C
Maximum System Voltage 1000 VDC
Back Transparent Backsheet
Application Class Class A
Frame Silver Anodized Aluminum Alloy
Max. Fuse Rating 30A
Temperature Coefficient (Voc) -0.26% /°C
Connectors MC4 Type
