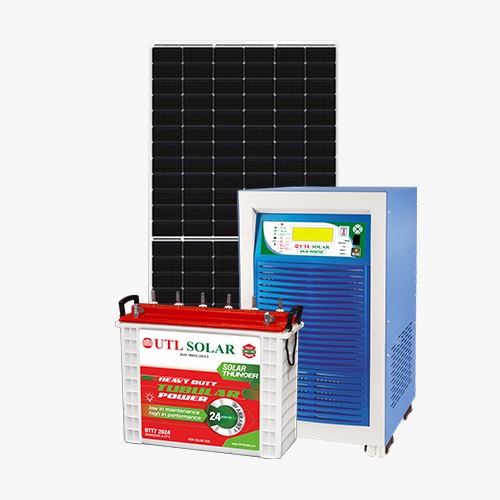

3kW/48V Hybrid Solar Panel System with 150AH Lead-acid battery

Original price was: ₹280,692.00.Current price is: ₹215,917.00. (Inclusive of all Taxes)

Solar Inverter	Sigma Pro 3kVA/48V rMPPT Solar Hybrid PCU
Inverter Model	UGE3048
Inverter warranty	5 years

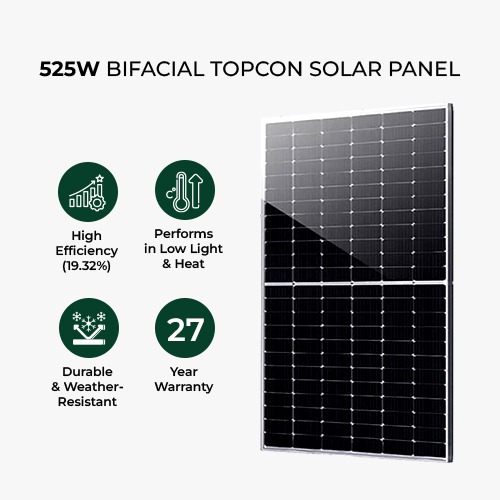

Solar Panel	525W DCR TopCON X 6 Nos.
Solar Panel Performance Warranty	27 years performance warranty
Solar Panel Product Warranty	10 years

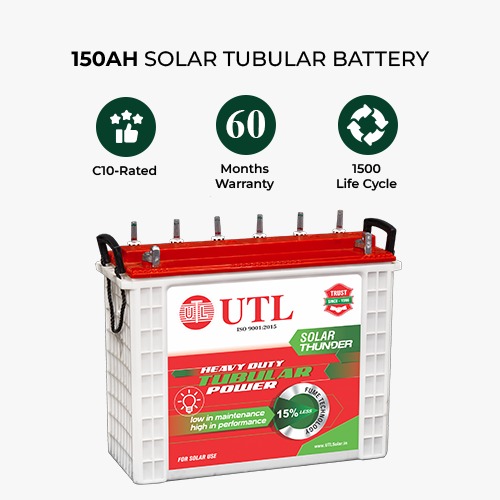

Battery	150AH UST 1560 Battery x 4 Nos.
Battery Warranty	60 Months*
Daily Unit Generation	12-15 Units Per day
Space Required	180 Sq. Ft. – 200 Sq. Ft.
Installation Materials	ACDB & DCDB Box Lightning Arrester Earthing Materials HDPE Conduit MC4 Connectors

Availability: 20 in stock

Guaranteed Safe Checkout

3kW/48V Hybrid Solar System

Want to save electricity bills, get backup during power cuts, and avail subsidy from the government at the same time? The 3 kW Hybrid solar power generating system (SPGS) is your ultimate all round power solution. It’s a featureful, long lasting, and sustainable solar solution that comes with a combination of top quality DCR solar panels, rMPPT solar hybrid inverter, and long lasting solar tubular battery.

Solar Kit

Solar Kit Items

Item No	Description of Items	Specification
1	SOLAR PV MODULE	525W TopCON N-Type DCR Bi-facial (Half-cut) Solar Panel X 6
2	UTL HYBRID INVERTER	Sigma Pro 3kW/48V
3	DCDB 1 IN 1OUT WITH SPD & FUSE	IP65 BOX, 20A DC Fuse for each string & (DC SPD II) 600V
4	ACDB 3 KW	2 Pole 25 Amp MCB + AC SPD Type 2 + IP 65 Polycarbonate Enclosure
5	DC CABLE (Red & Black)	1CX4 SQmm Cu. Flexible DC Cable
6	Inverter to ACDB (AC CABLE)	2C*4 SQmm Cu. Flexible Cable
7	ACDB to LT PANEL (AC CABLE)	2C*4 SQmm Cu. xlpe armoured cable
8	EARTHING ROD	GI earthing rod 2 mtr Length (50MM DIA) / Copper earthing rod 2 mtr Length rod (14MM DIA)
9	EARTHING CHEMICAL BAG	25 kg earthing chemical bag
10	EARTHING CHAMBER	300MM DIA
11	Earthing Cable for LA	1C x 10 SQmm – Cu. Flexible Cable
12	Earthing Cable for DC & AC	1C x 6 SQmm – Cu. Flexible Cable
13	Ring Type Thimble	6SQMM
14	Ring Type Thimble	10SQMM
15	PIN Type Thimble	4 SQMM
16	PIN Type Thimble	6 SQMM
17	SS304 Nut bolt with Washer	M8x30mm
18	HDPE Conduit (25 mm)	UV protected (25mm)
19	Elbow (25 mm)	UV protected (25mm)
20	T Bend (25 mm)	UV protected (25mm)
21	I bend (25 mm)	UV protected (25mm)
22	PU FOAM	PU foam bottle 750ml
23	Saddle	UV protected
24	Gitti	UV protected
25	Ferrul	Tube type ferrul
26	Screw	UV protected
27	Cable Tie – 300	UV protected nylon Cable Tie
28	Danger Sign (AC+DC)	UV protector (UTL)
29	MC4 Connectors with pin	Solar Connector MC4 DC 1000V 30A IP67 Male-Female
30	Electrical Tape R,B,B,G	red-1, blue-1, black-1, green-1
31	LA with HDG Stand	copper Bonded LA with 2 Mtr stand
32	Flexible Pipe	PVC Flexible Pipe 25mm

Steps to Purchase

Select the product variant that best meets your needs.
Complete your order by making the payment based on the listed price.
UTL Solar will connect you with an authorized Channel Partner for further assistance.
The Channel Partner will request essential documents for verification.
A convenient site visit will be arranged to assess your requirements.
You will receive a detailed quotation covering installation charges, liaison fees, and any additional structural costs.
The authorized Channel Partner will handle the installation with professionalism and care.
Settle the installation and associated charges directly with the Channel Partner.
Once the installation payment is complete, UTL Solar will promptly ship your product to your location.

Important Points to Remember

Eligibility for subsidies will be subject to evaluation and approval.
UTL Solar is responsible for the product only.
UTL Solar will not be held accountable for installation services.
Installation and maintenance services will be managed exclusively by the authorized Channel Partner.
Structural, Net metering and installation charges are not included in the listed product price.

Order Cancellation Policy

Orders can be cancelled before the product is shipped.
A site visit fee of Rs. 750 will be deducted from the refund amount.
Once the product has been dispatched, cancellations will not be accepted.

Warranty

Inverter: 5 years Onsite Warranty
Solar Panel:27 Years Performance Warranty
Battery: 60 Months*

FAQs

How does a Hybrid solar system work?

A Hybrid solar system generates electricity from solar panels, stores excess power in batteries,and exports surplus energy to the grid. It ensures uninterrupted power supply by switchingbetween solar, battery, and grid power as needed.

Does the system support lithium-ion batteries?

Yes, UTL Hybrid solar systems support lithium-ion batteries, offering better efficiency, faster,charging, and longer lifespan.

Is subsidy available for Hybrid solar systems?

Yes, Hybrid solar systems are now included in expanded rooftop solar schemes, benefiting from
government incentives for energy storage integration. Check local policies for specific eligibility.

Can I run an AC with a 3kW Hybrid solar system?

Yes, you can run an inverter AC with limited usage. The runtime depends on battery capacity,solar generation, and other connected appliances.

Subsidy Details

Price of 3kW Solar System with Subsidy

The PM Surya Ghar: Muft Bijli Yojna is set to bring solar power to 1 crore homes, offering up to 300 units of free electricity per month. Here’s the updated rooftop solar price list for 3kW solar system with subsidy:

State	Total Subsidy Applicable
Uttar Pradesh	₹1,08,000
Gujarat	₹78,000
Maharashtra	₹78,000
Haryana	₹78,000

3 Simple Steps to Claim Subsidy

Submit your application online on the national portal of Rooftop Solar.
Choose a suitable vendor.
Wait till you get the applicable subsidy amount directly in your bank account.

Terms and Conditions

Only residential solar panel systems are eligible.
Only On grid and hybrid solar systems are eligible.
No subsidy is applicable for systems larger than 10kW.
