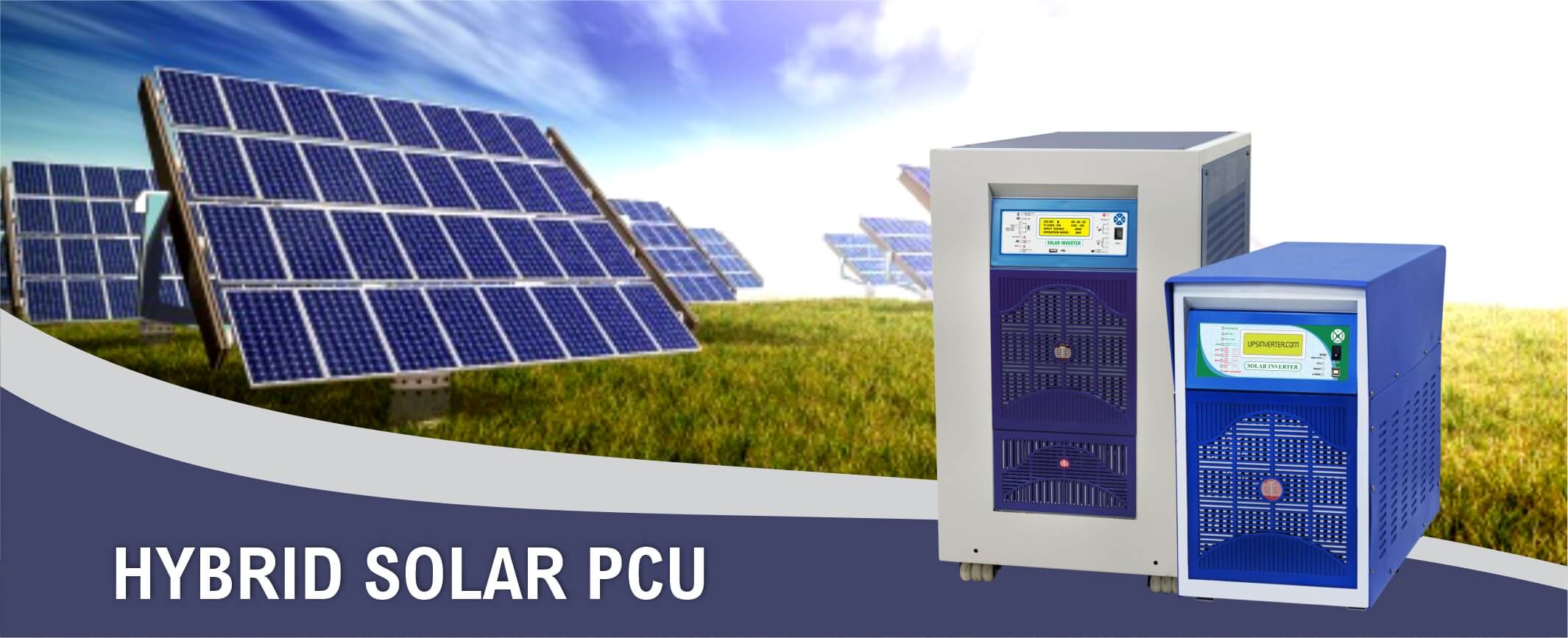

Hybrid Solar PCU
![battery(2)](https://i0.wp.com/www.upsinverter.com/wp-content/uploads/2020/08/battery2.png?fit=512%2C512&ssl=1)
Select by Capacity
🔋 Below 150Ah
🔋 150Ah - 180Ah
🔋 Above 180Ah
![settings](https://i0.wp.com/www.upsinverter.com/wp-content/uploads/2020/08/settings.png?fit=512%2C512&ssl=1)
Select by Technology
⚙️ Gel Battery
⚙️ Tubular Battery
![contract](https://i0.wp.com/www.upsinverter.com/wp-content/uploads/2020/08/contract.png?fit=512%2C512&ssl=1)
Select by Warranty
📝 Below 36 Months*
📝 36 Months* to 54 Months*
📝 Above 54 Months*
Download Catalogue
FAQ
Load Calculator
UTL Hybrid Solar PCU
Sigma+ Hybrid Solar PCU
Sigma+ PCU is a solar power conditioning unit which is a single phase output, Inverter system. It works as a Bi-directional inverter which means power will be exported into the grid or power will be imported from the Grid.
The Sigma+ PCU work in two operating condition:
1. Stand-alone 2. Grid Interactive
UTL Hybrid Solar PCU
Zeta Hybrid Solar PCU 7.5kVA to 50kVA
- DSP based design Pure Sine Wave, Built in MPPT charge controller.
- Maximum preference to Solar Power
- USB / RS485 based monitoring with 31 days data storage, DC and AC energy meter.
- Grid Interactive.
- Robust design-20 yrs product life
- High Efficiency and High Reliability
- Thermal Protection
- Fan ON/OFF - Temp Based
- Available from 10kVA to 20kVA
- AC and DC Parameter configurable from LCD.
- AC - Output Voltage
- Battery Charging Voltage (SPV & GRID)
- Battery Charging Current (SPV & GRID), Battery Low Cut
- Grid Charging, IT Load & Operating Mode - Enable/Disable by LCD.
