Description

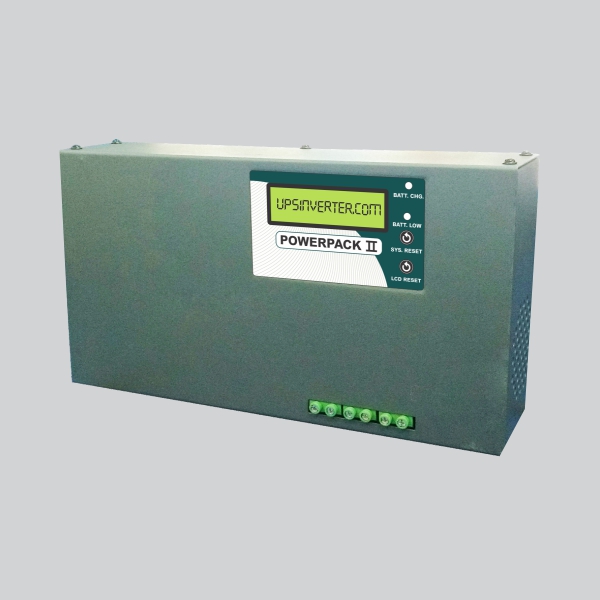

Solar Power Pack 12V/10A

Solar Power Pack is hybrid battery charger and DC power solution for DC equipment. It can provide power to battery and DC equipment using both solar as well as AC mains supply. Solar Power-pack uses micro-controller based MPPT algorithm to maximize energy from solar PV array. It has a number of output ports for fan, light, mobile charging etc.

PV Charging Efficiency >90%
LED Indication for Battery Charging and Battery Low.
Visual Display Parameters.
Temperature Compensation for Charging/Discharging.
Small Size.
Light weight.
Solar Power-pack has the following protections.

PV Charging Efficiency >90%

Efficiency of PV charging is greater than 90%. Thus Solar Power Pack gives optimum performance.

LED Indication for Battery Charging and Battery Low

Solar Power-pack has LED indications for Battery charging and Battery low conditions.

Visual Display Parameters

The following parameters can be visually read from Solar Power-pack display: Battery volt, charging %, charging current : main status: solar voltage, solar current : load voltage, load current.

Temperature Compensation for Charging/Discharging

Solar Power Pack possesses Temperature compensation for charging/ discharging feature.

Small Size

Solar Power Pack has a very small size and is thus easy to handle.

Light Weight

Solar Power Pack has very light weight. Therefore it is very easy to use and install.

Solar Power Pack has the following Protections:

Reverse Polarity of PV.
Reverse Polarity of Battery.
Over Current.
Over Voltage.
Over Load.
Load Short Circuit.
Deep Discharge.
Input Surge Voltage.
Protection Against Battery (night time leakage through PV)
Load Protections (LVD,LVR,HVD,HVR)

Brand

UTL

Specifications

TECHNICAL SPECIFICATION
POWER PACK -2 HYBRID CHARGER
INPUT	Solar	Panel Open Ckt Voltage, Voc	21.6V
		MPPT Volt., Vmp	16.4V
		Max. Panel Wattage	150W
	Mains	AC I/P Volt.	220V+/-10%
		Max. Power	150W
OUTPUT	Battery	Batt. Charging Volt.	14V
		Batt. Charging Current(Max)	10A
		Ripple Volt.	50mv
	Load	Load volt	12V
		Max. load current	3.5A
	Mobile charger	Voltage	5V
		Current	1A
Visual Display on LCD	Solar Voltage, Solar Current
	Battery Voltage, Battery Percentage(%), Battery Current,
	Load Voltage, Load Current
	Mains status
Temperature Compensation	Battery Charging		Y
Load Feature	LVD, LVR, HVD, HVR		Y
Data Logging	By USB		USB Interface(Optional)
PROTECTIONS	Battery Reverse		Y
	Solar short Circuit		Y
	Solar I/P Revese Polarity		Y
	O/P Short Circuit		Y
	O/p reverse polarity		Y
	Deep discharge		Y
	Protection agaist battery ( night time lickage current from PV)		y
	Solar Charging Current limit		Y
LED status	LED1( Charging ON)	Glow Solid(GREEN)
	LED2( Battery Low)	Glow Solid(RED)
Tranisent and Surge protection			Yes
Withstand Volt.			1.5KV
Efficiency(at full Load)			>90%
Working Temperature			-10°C to 50°C
Control algorithm			Enhanced MPPT
